數控前送料剪板機工作原理（Working Principle of the CNC Front-feeding Plate Shearing Machine）：

板材輸送

• 上料：工人將待加工的金屬板材放置在剪板機的前送料裝置上，如送料平臺或送料輥道。也可通過自動化上料設備，如機械手或吸盤裝置，將板材準確地放置到送料位置。

• 送料控制：數控系統根據預先輸入的加工參數，如板材長度、剪切次數等，控制送料裝置的運動。送料裝置通常由伺服電機驅動，通過滾珠絲杠或同步帶等傳動機構，帶動板材向前移動。伺服電機能夠精確控制送料的速度和位置，確保板材每次輸送的精度。

• 定位：當板材輸送到指定位置時，送料裝置會停止運動，同時定位裝置會對板材進行精確的定位，以保證剪切位置的準確性。定位裝置可以是機械擋塊、光電傳感器或激光定位系統等。

剪切動作

• 刀具驅動：剪板機的剪切刀具由液壓系統或機械傳動系統驅動。在液壓驅動的剪板機中，液壓泵將高壓油輸送到液壓缸，推動刀具上下運動；在機械傳動的剪板機中，電機通過皮帶、齒輪等傳動機構帶動刀具運動。

• 剪切力計算：數控系統會根據板材的材質、厚度和寬度等參數，計算出所需的剪切力，并控制液壓系統或機械傳動系統提供相應的動力，確保刀具能夠順利地切斷板材。

• 刀具閉合：當板材定位完成后，數控系統發出指令，驅動刀具向下運動，與下刀片閉合，對板材進行剪切。刀具的運動速度和行程也由數控系統精確控制，以保證剪切質量。

數控系統控制

• 參數設置：操作人員通過數控系統的操作界面，輸入板材的尺寸、材質、剪切長度、剪切次數等加工參數。數控系統會根據這些參數自動生成加工方案，并控制送料裝置和剪切刀具的運動。

• 實時監控：在加工過程中，數控系統會實時監控送料裝置和剪切刀具的運動狀態，如位置、速度、壓力等。如果發現異常情況，如送料偏差、刀具磨損等，數控系統會及時發出警報，并自動調整加工參數或停止加工，以保證加工質量和設備安全。

• 數據存儲和調用：數控系統可以存儲多個加工方案，操作人員可以根據需要隨時調用這些方案，提高加工效率。同時，數控系統還可以記錄加工過程中的各種數據，如加工時間、剪切次數、板材消耗等，方便進行生產管理和質量追溯。

廢料處理

• 廢料分離：剪切完成后，板材被切斷成所需的長度，廢料會從剪板機的廢料出口排出。有些剪板機還配備了廢料分離裝置，能夠?qū)U料與成品板材自動分離，提高生產效率。

• 廢料收集：排出的廢料會被收集到廢料箱或廢料輸送機上，以便進行后續的處理，如回收利用或廢棄處理。

Plate Conveying

• Loading: Workers place the metal plates to be processed on the front-feeding device of the plate shearing machine, such as the feeding platform or the feeding roller table. Automated loading equipment, such as manipulators or suction cup devices, can also be used to accurately place the plates in the feeding position.

• Feeding Control: According to the pre-input processing parameters, such as the plate length and the number of shearing times, the CNC system controls the movement of the feeding device. The feeding device is usually driven by a servo motor, and the plate is driven to move forward through transmission mechanisms such as ball screws or synchronous belts. The servo motor can precisely control the feeding speed and position to ensure the accuracy of each plate feeding.

• Positioning: When the plate is conveyed to the specified position, the feeding device will stop moving. At the same time, the positioning device will accurately position the plate to ensure the accuracy of the shearing position. The positioning device can be a mechanical stop, a photoelectric sensor, or a laser positioning system, etc.

Shearing Action

• Tool Drive: The shearing tool of the plate shearing machine is driven by a hydraulic system or a mechanical transmission system. In a hydraulically driven plate shearing machine, the hydraulic pump delivers high-pressure oil to the hydraulic cylinder to push the tool to move up and down. In a mechanically driven plate shearing machine, the motor drives the tool to move through transmission mechanisms such as belts and gears.

• Shearing Force Calculation: The CNC system will calculate the required shearing force according to parameters such as the material, thickness, and width of the plate, and control the hydraulic system or the mechanical transmission system to provide the corresponding power to ensure that the tool can smoothly cut off the plate.

• Tool Closing: After the plate is positioned, the CNC system issues an instruction to drive the tool to move downward and close with the lower blade to shear the plate. The movement speed and stroke of the tool are also precisely controlled by the CNC system to ensure the shearing quality.

CNC System Control

• Parameter Setting: The operator inputs processing parameters such as the size, material, shearing length, and the number of shearing times of the plate through the operation interface of the CNC system. The CNC system will automatically generate a processing plan according to these parameters and control the movement of the feeding device and the shearing tool.

• Real-time Monitoring: During the processing, the CNC system will monitor the movement status of the feeding device and the shearing tool in real time, such as position, speed, and pressure. If an abnormal situation is detected, such as feeding deviation or tool wear, the CNC system will promptly issue an alarm and automatically adjust the processing parameters or stop the processing to ensure the processing quality and equipment safety.

• Data Storage and Retrieval: The CNC system can store multiple processing plans, and the operator can call these plans at any time as needed to improve processing efficiency. At the same time, the CNC system can also record various data during the processing, such as processing time, the number of shearing times, and plate consumption, which is convenient for production management and quality traceability.

Scrap Disposal

• Scrap Separation: After the shearing is completed, the plate is cut into the required length, and the scrap will be discharged from the scrap outlet of the plate shearing machine. Some plate shearing machines are also equipped with a scrap separation device, which can automatically separate the scrap from the finished plate to improve production efficiency.

• Scrap Collection: The discharged scrap will be collected in a scrap bin or a scrap conveyor for subsequent processing, such as recycling or disposal as waste.

數控前送料剪板機的操作流程是怎樣的?

前期準備

1. 檢查設備：查看設備外觀有無損壞，各部件是否正常，潤滑系統是否工作良好，液壓油、潤滑油液位是否在正常范圍內，電氣系統是否正常，各按鈕、開關是否靈敏。

2. 準備工具和材料：準備好所需的板材，確保板材表面平整、無雜質，尺寸符合加工要求。同時準備好相應的測量工具，如卡尺、卷尺等，以便對板材進行測量和檢驗。

3. 安裝刀具：根據加工要求選擇合適的刀具，安裝時要確保刀具安裝牢固，刀刃間隙調整合理。一般來說，刀刃間隙要根據板材的材質和厚度進行調整，材質較硬、厚度較大的板材需要較大的刀刃間隙。

程序設置

1. 開啟電源：打開設備電源開關，啟動數控系統，等待系統自檢完成。

2. 參數設置：根據板材的材質、厚度、長度、寬度等參數，在數控系統中設置相應的剪切參數，如剪切角度、刀片間隙、剪程等。同時，設置前送料的相關參數，如送料速度、送料長度等。

3. 編寫程序：如果需要進行批量生產或復雜形狀的剪切，可以在數控系統中編寫剪切程序。程序可以根據實際需求進行編輯，包括板材的定位、送料、剪切等動作的順序和參數。

板材上料

1. 放置板材：將待加工的板材放置在剪板機的前送料操作平臺上，注意板材的放置方向和位置要符合加工要求，并且要放置平穩，避免板材在送料過程中發生晃動或偏移。

2. 定位板材：通過數控系統控制前送料裝置，將板材準確地定位到剪切位置。在定位過程中，可以使用測量工具對板材的位置進行檢查和調整，確保板材的定位精度符合要求。

剪切加工

1. 啟動剪切：確認板材定位無誤后，按下啟動按鈕，剪板機開始按照預設的程序和參數進行剪切加工。在剪切過程中，要注意觀察設備的運行狀態，如刀具的切削情況、板材的送料情況等，如有異常應及時停機處理。

2. 監控加工過程：操作人員應時刻關注剪切過程，確保板材的剪切質量。如果發現剪切尺寸不準確、切口不平整等問題，應及時調整相關參數或停止設備進行檢查和維修。

3. 完成剪切：當板材完成剪切后，剪板機自動停止運行。此時，操作人員可以將剪切好的板材取下，并進行下一次的上料和剪切操作。

加工結束

1. 清理工作區域：加工結束后，關閉設備電源，清理工作區域，將剪下的廢料收集起來，保持工作環境的整潔。

2. 保養設備：對剪板機進行日常保養，如清理刀具、潤滑各運動部件、清理機床導軌等，以延長設備的使用壽命和保證設備的性能。

3. 記錄數據：記錄本次加工的相關數據，如板材的材質、規格、加工數量、加工時間等，以便于生產管理和質量追溯。

1. Inspect the Equipment: Check the appearance of the equipment for any damage. Ensure that all components are in normal condition, the lubrication system is functioning properly, the levels of hydraulic oil and lubricating oil are within the normal range, the electrical system is operating normally, and all buttons and switches are sensitive.

2. Prepare Tools and Materials: Prepare the required plates, ensuring that the surface of the plates is flat, free of impurities, and their dimensions meet the processing requirements. At the same time, prepare corresponding measuring tools such as calipers and tape measures to measure and inspect the plates.

3. Install the Cutting Tools: Select appropriate cutting tools according to the processing requirements. When installing the tools, make sure they are firmly fixed and the clearance between the cutting edges is adjusted reasonably. Generally speaking, the clearance between the cutting edges should be adjusted according to the material and thickness of the plate. Plates with harder materials and greater thickness require a larger clearance between the cutting edges.

1. Power On: Turn on the power switch of the equipment and start the CNC system. Wait for the system to complete the self-check.

2. Parameter Setting: According to parameters such as the material, thickness, length, and width of the plate, set the corresponding shearing parameters in the CNC system, such as the shearing angle, the clearance of the blades, and the shearing stroke. Meanwhile, set the relevant parameters for front feeding, such as the feeding speed and the feeding length.

3. Program Compilation: If batch production or shearing of complex shapes is required, a shearing program can be compiled in the CNC system. The program can be edited according to actual needs, including the sequence and parameters of actions such as the positioning, feeding, and shearing of the plate.

1. Place the Plate: Place the plate to be processed on the front-feeding operation platform of the plate shearing machine. Pay attention that the placement direction and position of the plate should meet the processing requirements, and the plate should be placed steadily to avoid shaking or deviation during the feeding process.

2. Position the Plate: Control the front-feeding device through the CNC system to accurately position the plate at the shearing position. During the positioning process, measuring tools can be used to check and adjust the position of the plate to ensure that the positioning accuracy of the plate meets the requirements.

1. Start Shearing: After confirming that the plate is positioned correctly, press the start button, and the plate shearing machine will start the shearing process according to the preset program and parameters. During the shearing process, pay attention to observing the operation status of the equipment, such as the cutting condition of the tools and the feeding condition of the plate. If any abnormalities occur, stop the machine immediately for handling.

2. Monitor the Processing: The operator should always pay attention to the shearing process to ensure the shearing quality of the plate. If problems such as inaccurate shearing dimensions or uneven cutting edges are found, adjust the relevant parameters in a timely manner or stop the equipment for inspection and maintenance.

3. Complete Shearing: When the plate is sheared, the plate shearing machine will stop running automatically. At this time, the operator can remove the sheared plate and proceed with the next loading and shearing operation.

1. Clean the Working Area: After the processing is completed, turn off the power of the equipment, clean the working area, collect the cut waste materials, and keep the working environment clean.

2. Maintain the Equipment: Conduct daily maintenance on the plate shearing machine, such as cleaning the cutting tools, lubricating all moving parts, and cleaning the machine tool guide rails, to extend the service life of the equipment and ensure its performance.

3. Record Data: Record the relevant data of this processing, such as the material and specification of the plate, the processing quantity, and the processing time, to facilitate production management and quality traceability.

一、性能特點//

1：主機采用HT11K系列數控閘式剪板機；

12.采用荷蘭DELEM公司的DAC360剪板機專用數控系統，精確控制剪切角度和間隙。

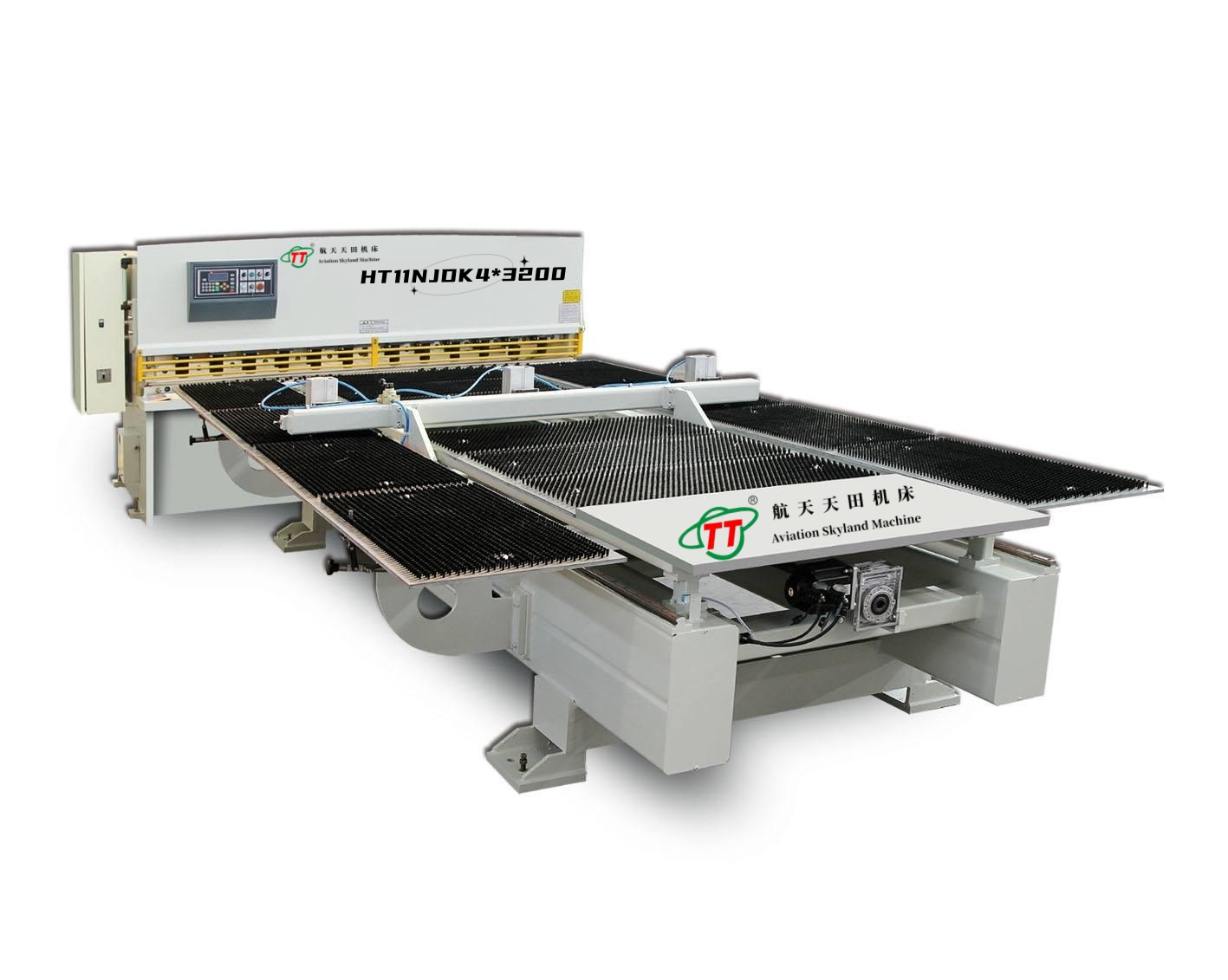

1. The main machine adopts the HT11K series CNC guillotine plate shearing machine.

2. It adopts the DAC360 CNC system imported from DELEM Company in the Netherlands, which is a dual-axis CNC system.

3. It is equipped with a front-feeding operation platform.

1. This CNC system is a general control system for CNC hydraulic guillotine plate shearing machines.

2. It has a high-definition LCD display with a 240*64 dot matrix.

3. The internationally universal RS232 standard interface makes it convenient to connect with a computer.

4. There are 1000 program lines, with a maximum of 25 steps in each program, and each step can be repeated 99 times.

5. It controls three servo axes, and X1-X2 can feed synchronously.

6. It can automatically control analog axes such as the shearing angle, blade clearance, and shearing stroke.

7. It can automatically or manually search for the reference point, and can also automatically memorize the value of the last actual position after a power outage.

8. It has a compensation function. If there is a small error between the length of the cut plate and the set value, for reasons such as the arching of the plate, the actual shearing length will have an error.

9. It has a rear stop gauge retraction function. When shearing thick plates, in order to prevent the plate from deforming and squeezing the tool and protect the lead screw, the rear stop gauge can achieve the retraction function when the clamping cylinder presses against the plate.

1. The frame adopts an all-steel welded structure, which has sufficient strength and rigidity. And through normalizing and high-frequency vibration, the internal stress is eliminated to ensure the overall accuracy of the machine body.

2. A large-scale floor-type boring and milling machine is used, and the precision machining is carried out by the one-time machining method to ensure the machining accuracy.

3. The hydraulic guillotine structure with three-point supported rolling bearings eliminates the support clearance and improves the shearing accuracy.

4. The hydraulic system adopts an integral logic circuit, with stable operation, low noise, and simple maintenance.

5. Japanese NOK seals are used; specially made oil cylinders control the operation of the knife plate.

6. The material pressing device adopts an integral circuit and independent parallel clamping cylinders. When the plate is uneven, it can freely stretch and press against the plate.

7. It is controlled by electricity, and fixed-stroke shearing can be realized, and the shearing stroke is adjustable.

8. The electrical control is centralized and reliable, as follows:
   The power facilities are all installed inside the machine body, and the operation, control, and realization are carried out through the buttons on the control panel. A foot switch is provided, and the shearing action can be directly operated through it, which is convenient and fast. The overload and short circuit of the motor are protected by an air switch.

9. The hydraulic system is safe and reliable.

10. The upper and lower knives are made of high-quality HK13/6Crw2si or imported DA53 materials, and all are heat-treated to ensure that they have sufficient hardness and a long service life.

11. The ball-type worktable and the front material supporting device make the feeding convenient and ensure that the workpiece is not scratched during operation. The CNC rear stop gauge device adopts high-performance servo motors and drivers, and the precision ball screw drive positioning accuracy is ≤±0.15mm.

12. The DAC360 special CNC system for plate shearing machines of DELEM Company in the Netherlands is adopted to precisely control the shearing angle and clearance.

設備型號
Equipment Model

可剪板材規格
Specifications of
 Shearable Plate
 Materials
(長*寬)(mm)

剪切角(°)
Shearing angle

行程次數(n/min)
Number of strokes

后擋料距離
Distance of the
rear stop gauge

電機功率
Motor power

重量
weight

外形尺寸(長*寬*高)
Overall Dimensions
(Length * Width * Height)

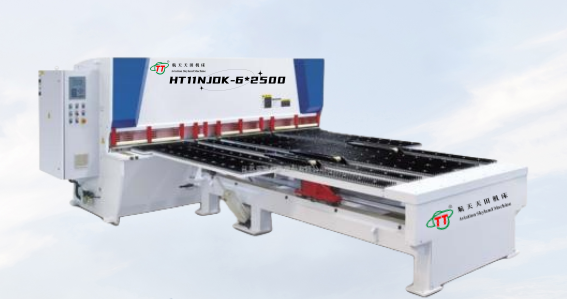

HT11K-6*2500

6*2500

1.5°

18

20-600

7.5

4800

3040mm*8610mm*1650mm

HT11K-6*3200

6*3200

1.5°

≥14

20-600

7.5

5900

3840mm*9310mm*1650mm

HT11K-8*3200

8*3200

1.5°

≥10

20-600

7.5

6700

3840mm*9310mm*1650mm
