1. Power Transmission

2. Shearing Mechanism

• Upper and Lower Blades: The upper blade is fixed on the slider (moving blade), and the lower blade is fixed on the workbench (fixed blade). The two form a certain shear angle (usually 1°–6°) and blade clearance (adjustable according to material thickness).

• Material Positioning: The material to be cut is placed on the workbench and fixed by the backgauge (material positioning device) and pressure foot to ensure cutting accuracy and prevent movement during shearing.

3. Shearing Process

• When the slider drives the upper blade to move downward, the pressure foot first presses the material tightly.

• As the upper blade continues to descend, it contacts the material and applies shear force. When the stress exceeds the ultimate shear strength of the material, the material is cut along the blade edge.

• After the shearing is completed, the slider drives the upper blade to return to the initial position, and the pressure foot releases the material, completing a working cycle.

4. Clearance Adjustment

5. Safety Protection

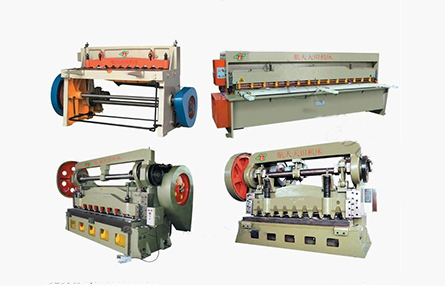

Key Features of Mechanical Shearing Machines:

• Driven by mechanical transmission, suitable for medium-thickness plate shearing (typically ≤16mm).

• Simple structure, low maintenance costs, but lower efficiency compared to hydraulic shearing machines for thick plates.

• Commonly used in sheet metal processing, metal fabrication, and other industries.

一、HT11系列小型機械剪板機技術參數（Technical Parameters of Series Small Mechanical Plate Shears）：

型號

可剪板

可剪板

剪切(°)

行程次數

后檔料

電機功率范

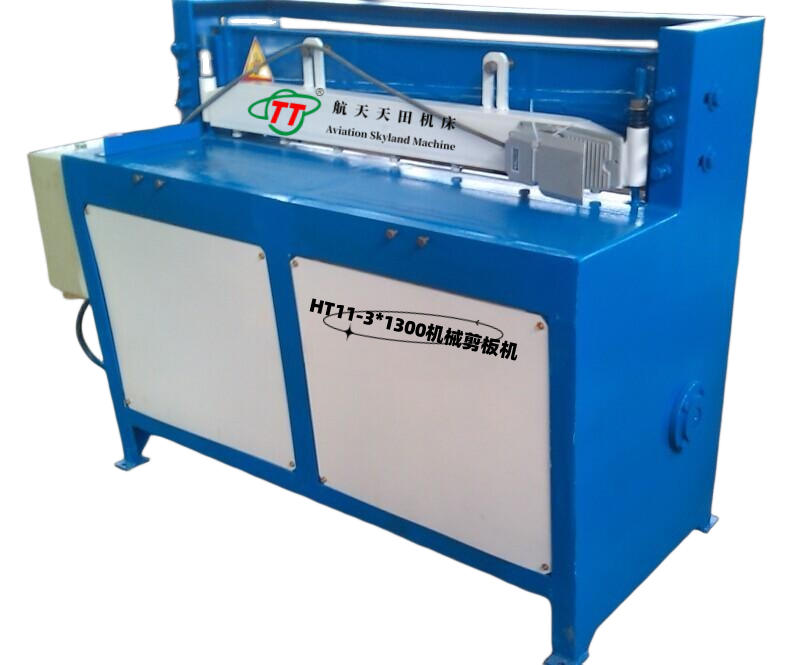

HT11-1x800

1

800

2°25′

20

350

1.5

HT11-1x1000

1

1000

2°25′

20

350

1.5

HT11-1x1300

1

1300

2°25′

20

350

1.5

HT11-1x1500

1

1500

2°25′

20

350

2.2

HT11-2x1000

2

1000

2°25′

20

350

2.2

HT11-2x1300

2

1300

2°25′

20

350

2.2

HT11-2x1500

2

1500

2°25′

20

350

3

HT11-3x1300

3

1300

2°25′

20

350

3

HT11-3x1500

3

1500

2°25′

20

350

3

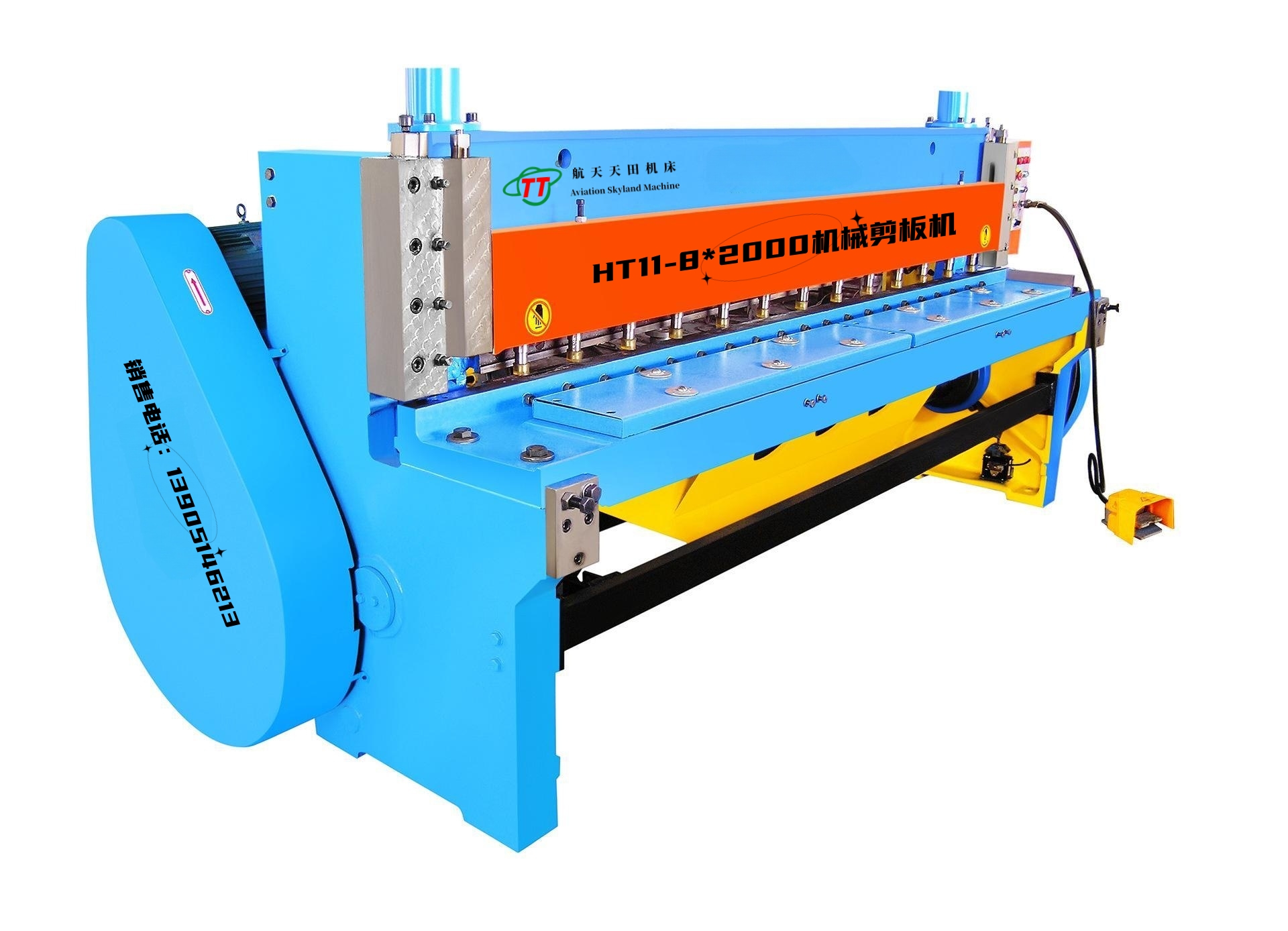

二、HT11系列機械剪板機技術參數表（Technical Parameter Table of Series Mechanical Plate Shears）：

型號Type

HT11-4*2000

HT11-4*2500

HT11-6*2000

HT11-6*2500

剪切厚度Shearing thichness

4mm

4mm

6mm

6mm

剪切寬度Shearing width

2000mm

2500mm

2000mm

2500mm

剪切角度Shearing angle

1.5°

1.5°

2°

2°

行程次數Number stroke

60

60

50

60

后擋料范圍Back gang range

0-680mm

0-800mm

10-580mm

10-580mm

電機功率Motor Power

5.5Kw

5.5Kw

7.5Kw

7.5Kw

外形尺寸Dimensions

3100*1590*1440

3510*1600*1465

3040*1550*1465

3510*1600*1465

備注：本資料所列數據為參考數據，如與機床實際數據不符，應以機床實際數據為準，以上參數如有變動，恕不另行通知，本公司保留對此資料的最終解釋權！

Remarks: The data listed in this document are for reference only. In case of any discrepancy between these data and the actual data of the machine tool, the actual data of the machine tool shall prevail. The above parameters are subject to change without prior notice, and our company reserves the right to the final interpretation of this document!
