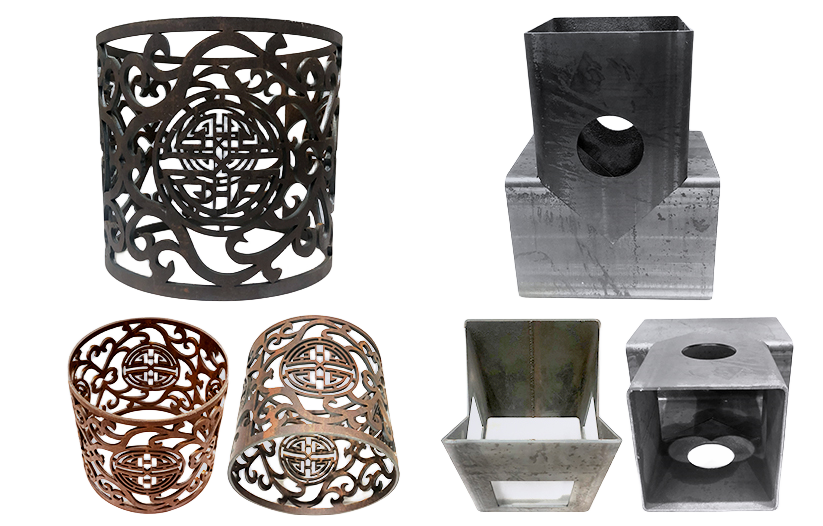

一、伺服隨動全自動上料數控光纖激光切管機憑借其高精度、高效率和靈活性，在多個領域得到廣泛應用，具體如下：
汽車制造領域：
車身結構件加工：用于切割汽車車身的各種管材，如車架縱梁、橫梁、車門防撞梁等。能夠精確切割管材的形狀和尺寸，滿足車身結構件的高精度要求，保證車身的強度和安全性。
汽車零部件制造：可切割汽車發動機的進氣管、排氣管、油管等零部件，以及汽車座椅骨架的管材。通過精確控制切割參數，實現對不同材質和壁厚管材的高質量切割，提高零部件的加工精度和生產效率。
航空航天領域：
航空發動機部件加工：可切割航空發動機的燃油管、液壓管等管材，能夠滿足航空發動機對管材加工精度和表面質量的嚴格要求。通過高精度的切割和隨動控制，保證管材的尺寸精度和切割質量，提高航空發動機的性能和可靠性。
飛機機身結構件制造：用于切割飛機機身的框架結構管材，如機翼、機身骨架等。能夠根據飛機機身的設計要求，精確切割管材的形狀和角度，實現復雜結構件的加工，提高飛機機身的強度和輕量化程度。
機械制造領域：
機械設備框架加工：可切割各種機械設備的框架管材，如工業機器人的手臂框架、自動化生產線的機架等。通過高精度的切割和伺服隨動控制，保證框架結構的精度和穩定性，提高機械設備的性能和可靠性。
機械零部件加工：用于切割機械傳動系統的管材，如傳動軸、液壓管等。能夠精確控制切割尺寸和形狀，滿足機械零部件的高精度加工要求，提高機械零部件的質量和生產效率。
建筑裝飾領域：
建筑幕墻加工：可切割建筑幕墻的管材，如鋁合金型材、不銹鋼管材等。能夠根據建筑幕墻的設計要求，切割出各種形狀和尺寸的管材，實現幕墻的多樣化設計和安裝。通過高精度的切割和隨動控制，保證管材的切割精度和表面質量，提高建筑幕墻的美觀度和安全性。
室內裝飾管材加工：用于切割室內裝飾的管材，如樓梯扶手、欄桿、裝飾線條等。能夠根據室內裝飾的設計風格，切割出各種形狀和圖案的管材，實現個性化的裝飾效果。通過高精度的切割和伺服隨動控制，保證管材的切割精度和表面質量，提高室內裝飾的品質和美觀度。
家具制造領域：
家具框架加工：可切割家具框架的管材，如實木家具的框架、金屬家具的管材等。能夠根據家具的設計要求，切割出各種形狀和尺寸的管材，實現家具框架的多樣化設計和制造。通過高精度的切割和伺服隨動控制，保證管材的切割精度和表面質量，提高家具的結構強度和美觀度。
家具裝飾管材加工：用于切割家具裝飾的管材，如家具的裝飾線條、拉手等。能夠根據家具的裝飾需求，切割出各種形狀和圖案的管材，實現個性化的裝飾效果。通過高精度的切割和伺服隨動控制，保證管材的切割精度和表面質量，提高家具的裝飾品質和美觀度。
石油化工領域：
管道加工：可切割石油化工行業的各種管道，如輸油管道、輸氣管道、化工管道等。能夠根據管道的設計要求，精確切割管材的長度、角度和形狀，滿足管道安裝的高精度要求，保證管道的密封性和安全性。
設備零部件加工：用于切割石油化工設備的零部件管材，如反應釜的攪拌軸、換熱器的管材等。通過高精度的切割和伺服隨動控制，保證零部件的加工精度和表面質量，提高石油化工設備的性能和可靠性。
I. The servo-following full-automatic loading CNC fiber laser pipe cutting machine is widely applied in multiple fields due to its high precision, high efficiency and flexibility. The specific applications are as follows:
Automobile Manufacturing Field:
Processing of Body Structural Components: It is used to cut various pipes of automobile bodies, such as frame longitudinal beams, cross beams, and door anti-collision beams. It can accurately cut the shape and size of the pipes, meeting the high-precision requirements of body structural components and ensuring the strength and safety of the vehicle body.
Manufacturing of Automobile Parts: It can cut parts such as the intake pipes, exhaust pipes, and oil pipes of automobile engines, as well as the pipes of car seat frames. By precisely controlling the cutting parameters, it can achieve high-quality cutting of pipes with different materials and wall thicknesses, improving the processing precision and production efficiency of parts.
Aerospace Field:
Processing of Aeroengine Components: It can cut pipes such as fuel pipes and hydraulic pipes of aeroengines, meeting the strict requirements of aeroengines for the processing precision and surface quality of pipes. Through high-precision cutting and following control, it ensures the dimensional accuracy and cutting quality of pipes, improving the performance and reliability of aeroengines.
Manufacturing of Aircraft Body Structural Components: It is used to cut the frame structure pipes of aircraft bodies, such as wings and fuselage frames. According to the design requirements of the aircraft body, it can accurately cut the shape and angle of the pipes, realizing the processing of complex structural components and improving the strength and lightweight degree of the aircraft body.
Mechanical Manufacturing Field:
Processing of Mechanical Equipment Frames: It can cut the frame pipes of various mechanical equipment, such as the arm frames of industrial robots and the frames of automated production lines. Through high-precision cutting and servo-following control, it ensures the precision and stability of the frame structure, improving the performance and reliability of mechanical equipment.
Processing of Mechanical Parts: It is used to cut the pipes of mechanical transmission systems, such as drive shafts and hydraulic pipes. It can precisely control the cutting size and shape, meeting the high-precision processing requirements of mechanical parts, and improving the quality and production efficiency of mechanical parts.
Construction and Decoration Field:
Processing of Building Curtain Walls: It can cut pipes for building curtain walls, such as aluminum alloy profiles and stainless steel pipes. According to the design requirements of building curtain walls, it can cut pipes of various shapes and sizes, realizing the diversified design and installation of curtain walls. Through high-precision cutting and following control, it ensures the cutting precision and surface quality of pipes, improving the aesthetic appearance and safety of building curtain walls.
Processing of Indoor Decoration Pipes: It is used to cut pipes for indoor decoration, such as staircase handrails, railings, and decorative lines. According to the design style of indoor decoration, it can cut pipes of various shapes and patterns, achieving personalized decorative effects. Through high-precision cutting and servo-following control, it ensures the cutting precision and surface quality of pipes, improving the quality and aesthetic appearance of indoor decoration.
Furniture Manufacturing Field:
Processing of Furniture Frames: It can cut the pipes of furniture frames, such as the frames of solid wood furniture and the pipes of metal furniture. According to the design requirements of furniture, it can cut pipes of various shapes and sizes, realizing the diversified design and manufacturing of furniture frames. Through high-precision cutting and servo-following control, it ensures the cutting precision and surface quality of pipes, improving the structural strength and aesthetic appearance of furniture.
Processing of Furniture Decorative Pipes: It is used to cut the decorative pipes of furniture, such as decorative lines and handles of furniture. According to the decorative needs of furniture, it can cut pipes of various shapes and patterns, achieving personalized decorative effects. Through high-precision cutting and servo-following control, it ensures the cutting precision and surface quality of pipes, improving the decorative quality and aesthetic appearance of furniture.
Petrochemical Field:
Pipeline Processing: It can cut various pipelines in the petrochemical industry, such as oil pipelines, gas pipelines, and chemical pipelines. According to the design requirements of pipelines, it can precisely cut the length, angle, and shape of pipes, meeting the high-precision requirements of pipeline installation and ensuring the sealing and safety of pipelines.
Processing of Equipment Parts: It is used to cut the pipes of parts of petrochemical equipment, such as the stirring shafts of reaction kettles and the pipes of heat exchangers. Through high-precision cutting and servo-following control, it ensures the processing precision and surface quality of parts, improving the performance and reliability of petrochemical equipment
二、伺服隨動全自動上料數控光纖激光切管機的工作原理涉及上料、送料、激光切割等多個環節，以下是詳細的工作原理介紹：

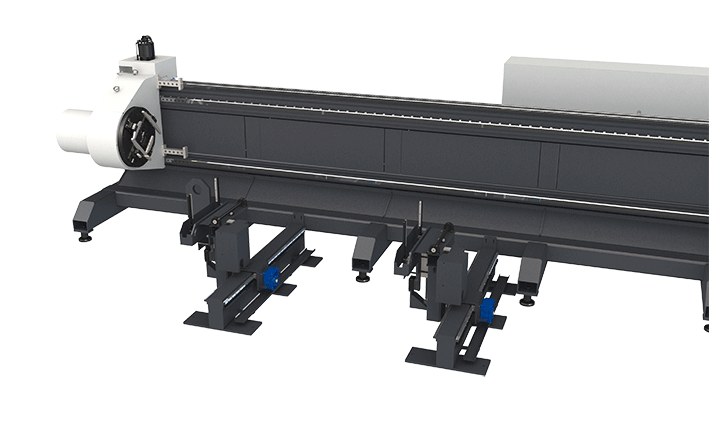

上料環節：設備配備專門的側掛式上料機構，配備自動料架，將待加工的管材放置在特定的上料自動料架上區域，上料機構會自動識別管材的規格和形狀，將管材抓取并放置到送料裝置上。部分先進的上料系統還具備自動分揀功能，能夠?qū)Σ煌馁|(zhì)、管徑的管材進行分類上料，以滿足多樣化的加工需求。
伺服送料環節：送料系統由伺服電機驅動，通過滾珠絲杠、直線導軌等精密傳動部件實現管材的精確輸送。伺服電機能夠根據數控系統的指令，精確控制管材的送料速度和長度。在送料過程中，伺服系統實時監測管材的位置和運動狀態，確保送料的精度和穩定性。例如，當需要切割不同長度的管材時，伺服系統能夠快速、準確地調整送料長度，誤差可控制在極小范圍內。
隨動系統工作原理：隨動系統是該設備的關鍵部分，主要用于跟蹤管材的形狀和位置變化。在切割過程中，管材可能會因材質、加工應力等因素發生微小的變形或位置偏移。隨動系統通過傳感器（如激光傳感器、視覺傳感器等）實時檢測管材的實際位置和姿態，然后反饋給數控系統。數控系統根據反饋信息，通過伺服電機調整切割頭的位置和角度，使切割頭始終與管材表面保持合適的距離和角度，確保激光切割的精度和質量。
激光切割環節：數控系統根據預先編制的切割程序，控制光纖激光發生器產生高能量的激光束。激光束通過光纖傳輸?shù)角懈铑^，經聚焦透鏡聚焦后，照射在管材表面。激光的高能量使管材表面的材料迅速熔化或汽化，同時，輔助氣體（如氧氣、氮?dú)獾龋┩ㄟ^(guò)切割頭噴出，將熔化或汽化的材料吹離切割區域，從而實現管材的切割。在切割過程中，數控系統還可以根據管材的材質和厚度，精確控制激光功率、切割速度、輔助氣體壓力等參數，以達到最佳的切割效果。
出料及余料處理：切割完成的管材通過出料裝置被送出設備，出料裝置可以對切割好的管材進行收集、整理和分類。對于切割剩余的廢料或余料，設備配備的廢料處理系統會進行收集和處理，例如通過廢料輸送帶將廢料輸送到指定的廢料收集區域，以保持工作環境的整潔和安全。
伺服隨動全自動上料數控光纖激光切管機通過各系統的協同工作，實現了管材的高精度、高效率切割，廣泛應用于機械制造、汽車、航空航天、建筑等行業。
II. The working principle of the servo-following full-automatic loading CNC fiber laser pipe cutting machine involves multiple links such as loading, feeding, and laser cutting. The following is a detailed introduction to its working principle:
Loading Link: The equipment is equipped with a special side-hanging loading mechanism and an automatic material rack. The pipes to be processed are placed in the specific area of the automatic material rack for loading. The loading mechanism can automatically identify the specifications and shapes of the pipes, grasp the pipes, and place them on the feeding device. Some advanced loading systems also have an automatic sorting function, which can classify and load pipes of different materials and pipe diameters to meet diversified processing requirements.
Servo Feeding Link: The feeding system is driven by a servo motor, and the precise conveying of pipes is realized through precision transmission components such as ball screws and linear guides. The servo motor can precisely control the feeding speed and length of the pipes according to the instructions of the CNC system. During the feeding process, the servo system monitors the position and movement state of the pipes in real time to ensure the precision and stability of feeding. For example, when it is necessary to cut pipes of different lengths, the servo system can quickly and accurately adjust the feeding length, and the error can be controlled within a very small range.
Working Principle of the Following System: The following system is a key part of the equipment, mainly used to track the shape and position changes of the pipes. During the cutting process, the pipes may undergo slight deformation or position offset due to factors such as material properties and processing stress. The following system uses sensors (such as laser sensors, vision sensors, etc.) to detect the actual position and attitude of the pipes in real time, and then feeds the information back to the CNC system. According to the feedback information, the CNC system adjusts the position and angle of the cutting head through the servo motor, so that the cutting head always maintains an appropriate distance and angle from the surface of the pipes to ensure the precision and quality of laser cutting.
Laser Cutting Link: The CNC system controls the fiber laser generator to generate a high-energy laser beam according to the pre-programmed cutting procedure. The laser beam is transmitted to the cutting head through the optical fiber and focused by the focusing lens, and then irradiates the surface of the pipes. The high energy of the laser rapidly melts or vaporizes the material on the surface of the pipes. At the same time, auxiliary gases (such as oxygen, nitrogen, etc.) are ejected through the cutting head to blow away the melted or vaporized material from the cutting area, thus realizing the cutting of the pipes. During the cutting process, the CNC system can also precisely control parameters such as laser power, cutting speed, and auxiliary gas pressure according to the material and thickness of the pipes to achieve the best cutting effect.
Discharging and Residual Material Handling: The cut pipes are sent out of the equipment through the discharging device, and the discharging device can collect, sort and classify the cut pipes. For the remaining waste or residual materials after cutting, the waste handling system equipped with the equipment will collect and process them. For example, the waste conveyor belt is used to transport the waste to the designated waste collection area to keep the working environment clean and safe.
The servo-following full-automatic loading CNC fiber laser pipe cutting machine realizes high-precision and high-efficiency cutting of pipes through the coordinated operation of each system, and is widely applied in industries such as machinery manufacturing, automobiles, aerospace, and construction.
三、伺服隨動全自動上料數控光纖激光切管機具有下列優點：
1.精度高，速度快。
2.切縫窄，切割面光滑，切割質量好。
3.無接觸切割，切邊受熱影響很小，基本沒有工件熱變形，避免材料沖剪時形成的塌邊，切縫一般不需要二次加工。
4.不損傷工件：激光切割頭不與材料表面相接觸，不劃傷工件。
5.不受被切割材料的硬度影響：激光可以對鋼板、不銹鋼、鋁合金板、硬質合金等進行加工，不管什么樣的硬度，都可以進行無形切割。
6.不受工件形狀的影響: 激光加工柔性好，可以加工任意圖形，可以切割管材及其它異型材。
7.節約模具投資：激光加工不需模具，沒有模具消耗，從而節省了加工費用，降低了生產成本，尤其適合大件產品的加工。
8.節省材料: 采用電腦編程，可以把不同形狀的產品進行整張材料套裁，大限度地提高材料的利用率。
9.提高新產品開發速度：產品圖紙形成后，馬上可以進行激光加工，在短的時間內得到新產品的實物。
10.節能環保。
III. The servo-following full-automatic loading CNC fiber laser pipe cutting machine has the following advantages:
High precision and fast speed.
Narrow cutting seam, smooth cutting surface and good cutting quality.
Contactless cutting, with minimal thermal influence on the cutting edge. There is basically no thermal deformation of the workpiece, and the cutting seam generally does not require secondary processing.
No damage to the workpiece: The laser cutting head does not come into contact with the surface of the material, and does not scratch the workpiece.
Unaffected by the hardness of the material to be cut: The laser can process steel plates, stainless steel, aluminum alloy plates, cemented carbide, etc. Regardless of the hardness, it can perform invisible cutting.
Unaffected by the shape of the workpiece: Laser processing has good flexibility and can process any graphics, and can cut pipes and other profiled materials.
Saving on mold investment: Laser processing does not require molds, and there is no mold consumption, thus saving processing costs and reducing production costs, especially suitable for the processing of large-sized products.
Saving materials: With computer programming, products of different shapes can be nested on the entire sheet of material, maximizing the utilization rate of materials.
Improving the development speed of new products: Once the product drawings are formed, laser processing can be carried out immediately, and physical samples of new products can be obtained in a short time.
Energy-saving and environmentally friendly
（3D工作視頻）3D working video

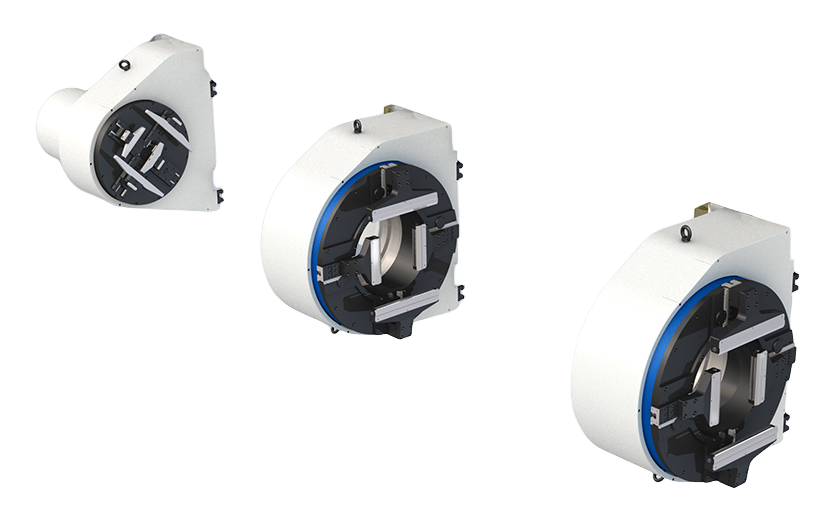

三卡盤結構 創新加工
三卡盤結構設計，加工過程采用三個卡盤夾持支撐，可對管材的彎曲、扭曲較大的管材調整夾持力進行矯正切割，可避免因管料后端抖動而影響前端切割精度，運行速度快、精度高、載重高。
Three Chuck Structure, Innovative Processing
With the design of the three chuck structure, during the processing, three chucks are used for clamping and supporting. For pipes with large bending and twisting, the clamping force can be adjusted for correction and cutting. It can prevent the cutting accuracy at the front end from being affected by the shaking of the rear end of the pipe material, featuring fast operation speed, high precision, and high load capacity.
負載大、范圍大

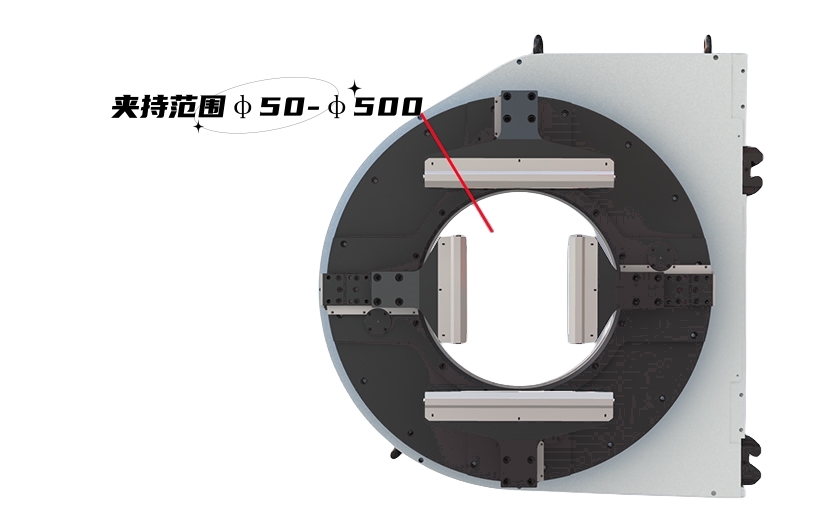

激光切管機的三卡盤結構，可避免因管料高速旋轉抖動而影響切割精度和效率。夾持范圍大，高承載力卡盤，最大夾持范圍可達500mm，最大承載可達2噸，更大填補重型管材切割需求，卡爪夾持力智能可調，夾持范圍可根據管材范圍快速更換。
Large Load and Wide Range
The three-chuck structure of the laser pipe cutting machine can prevent the cutting accuracy and efficiency from being affected by the shaking of the pipe material during high-speed rotation. It has a large clamping range. The chuck has a high load-bearing capacity, with the maximum clamping range reaching up to 500mm and the maximum load-bearing capacity reaching up to 2 tons, better meeting the cutting requirements of heavy pipes. The clamping force of the jaws can be intelligently adjusted, and the clamping range can be quickly changed according to the range of the pipes.
五、激光器優點：
1.為用戶節省成本。
2.切割6mm以下的金屬板材只需要吹空氣(普通空氣0.6MPa-0.8MPa),而不需要氧氣。節省使用氧氣的費用。切割速度快于同類設備。
3.切割速度高于同類設備30%，切割速度達到每分鐘4米。
4、重管多根上料 重載下料。
5、側掛式導軌結構，防塵效果好；上料架型材上料，V型架接料，無需等待自動化程度高，質量最優。 對夾下料，可防止管材在運輸和切割過程中滾動儲料輸送架，可存儲多根管材，方便人員運輸，節省時間。
V. Advantages of the Laser Cutting Machine:
Save costs for users.
When cutting metal sheets with a thickness of less than 6mm, only air (ordinary air at 0.6MPa - 0.8MPa) is required, and oxygen is not needed. This saves the cost of using oxygen. The cutting speed is faster than that of similar equipment.
The cutting speed is 30% higher than that of similar equipment, reaching 4 meters per minute.
Multiple heavy pipes can be loaded, and heavy-duty unloading is available.
The side-hanging guide rail structure has a good dust-proof effect; the material is loaded on the profile of the loading rack, and the V-shaped rack is used for receiving materials. There is no need to wait, and the degree of automation is high with the best quality. The opposite clamping unloading can prevent the pipes from rolling during transportation and cutting. The storage and conveying rack can store multiple pipes, which is convenient for personnel transportation and saves time
伺服隨動全自動上料數控光纖激光切管機特點說明：
1、本公司激光切割機采用先進國外進口IPG或Raycus(銳科)的激光器技術，光斑小，功率集中，割縫細、切割效率高，
2、采用柏楚4000+數控系統，采用優質先進的波刺黑金剛激光切割頭。
2.設備框架采用龍門雙絲杠、雙伺服電機同步驅動，運行平穩，切割精度高。這種方式只有數百萬元的大功率激光切割機采用。切割細線條、小圓等細小圖案，不變形，效果好。采用焦距跟隨設計，即使材料表面不平整仍可保證切割質量切縫平整、美觀，無需后序處理工序。
3.人性化設計的控制柜，方便用戶操作使用。
Characteristics Description of Servo-following Full-automatic Loading CNC Fiber Laser Pipe Cutting Machine:
The laser cutting machine of our company adopts the laser technology of imported IPG or Raycus (Ruike) from abroad. It has a small light spot, concentrated power, a narrow cutting seam, and high cutting efficiency.
It adopts the Bechuan 4000+ CNC system and high-quality and advanced Black King Kong laser cutting head of Bosi.
The equipment frame is driven synchronously by a gantry double lead screw and double servo motors, which runs stably and has high cutting precision. This method is only used in high-power laser cutting machines worth several million yuan. It can cut fine lines, small circles and other small patterns without deformation, and the effect is good. It adopts the focal length following design. Even if the surface of the material is uneven, it can still ensure the cutting quality. The cutting seam is flat and beautiful, and there is no need for subsequent processing procedures.
The control cabinet with a humanized design is convenient for users to operate
六、伺服隨動全自動上料數控光纖激光切管機技術參數：
型號 | HT-TR-12050 | HT-TR-9050 | HT-TR-12036 | HT-TR-9036 | HT-TR-L13050 |
加工范圍 | φ50-508mm | φ50-508mm | φ50-360mm | φ50-360mm | φ50-508mm |
□50-350mm | □50-350mm | □50-260mm | □50-260mm | □50-350mm |
定位精度 | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
重復定位精度 | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
最大空運行速度 | 40m/min | 40m/min | 60m/min | 60m/min | 40m/min |
最大空轉速度 | 50r/min | 50r/min | 80r/min | 80r/min | 50r/min |
單根管材最大質量 | 2000kg | 2000kg | 1200kg | 1200kg | 1500kg |
最大一次性下料尺寸 | 12000mm | 9000mm | 12000mm | 9000mm | 13000mm |
推薦功率段 | 1000W-80000W |
VI. Technical Parameters of the Servo-following Full-automatic Loading CNC Fiber Laser Pipe Cutting Machine：
| Processing Range | φ50-508mm
□50-350mm | φ50-508mm
□50-350mm | φ50-360mm
□50-260mm | φ50-360mm
□50-260mm | φ50-508mm
□50-350mm |
| Positioning Accuracy | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| Repeat Positioning Accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
| Maximum Idle Running Speed | 40m/min | 40m/min | 60m/min | 60m/min | 40m/min |
| Maximum Idle Speed | 50r/min | 50r/min | 80r/min | 80r/min | 50r/min |
| Maximum Mass of a Single Pipe | 2000kg | 2000kg | 1200kg | 1200kg | 1500kg |
| Maximum One-time Unloading Size | 12000mm | 9000mm | 12000mm | 9000mm | 12000mm |
備注：本資料所列數據為參考數據，如與機床實際數據不符，應以機床實際數據為準，以上參數如有變動，恕不另行通知，本公司保留對此資料的最終解釋權！
Remarks: The data listed in this document are for reference. In case of any discrepancy with the actual data of the machine tool, the actual data of the machine tool shall prevail. The above parameters are subject to change without prior notice. Our company reserves the right to interpret this document!
