一、技術優勢：
1、采用IPG光纖激光器或Raycus銳科光纖激光器和激光電源
IPG光纖激光器或銳科光纖激光器，模塊化和冗余設計；體積小巧，重量輕，便于移動；易于集成，其性能穩定、產品整體質量得到安全保障。
I. Technical Advantages:
Use IPG fiber lasers or Raycus fiber lasers and laser power supplies.
IPG fiber lasers or Raycus fiber lasers feature modular and redundant designs. They are compact in size and light in weight, making them easy to move. They are also easy to integrate, and their stable performance ensures the safety of the overall product quality.

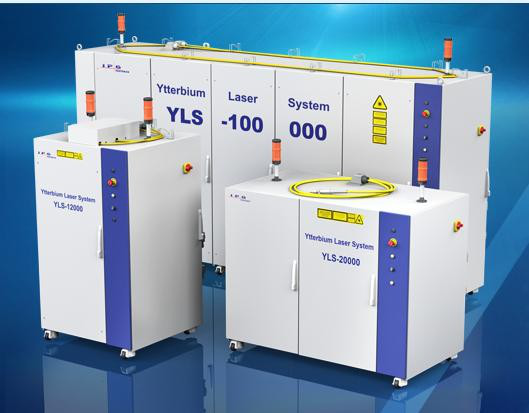

（圖片僅供參考，以實物為準The picture is for reference only. Please refer to the actual product）
二、IPG光纖激光器或Raycus銳科光纖激光器光纖激光器的主要特點：
1、主要基本功能
1) 光纖激光器電－光轉化效率高，轉換效率達30%以上，可大幅度節約工作時的耗電，節省運行成本，達到較高的生產效率；
2) 激光器運行時僅僅需要電能，不需要產生激光的額外氣體，具有較低的運行和維護費用；
3) 光纖激光器采用半導體模塊化和冗余設計，諧振腔內無光學鏡片，不需要啟動時間，具有免調節、免維護、高穩定性的優點，降低了配件成本和維護的時間，這是傳統激光器無法比擬的；
4) 光纖激光器的輸出波長為1.06微米，是CO2波長的1/10，輸出的光束質量好，功率密度高，有利于金屬材料的吸收，具有卓越的切割、焊接能力，從而使加工的費用降低;
5) 整機光路由光纖傳輸，不需要復雜的反射鏡等導光系統，光路簡單，結構穩定，外光路免維護；
6) 光通過光纖導出，使機械系統的設計變得非常簡單，非常容易與機器人或多維工作臺集成；
7) 激光器加上光閘后可以一器多機，通過光纖分光，分成多路多臺同時工作，易于擴展功能，升級方便、簡單；
8) 光纖激光器體積小，重量輕，工作位置可移動，占地面積小；
2、波刺黑金剛自動變焦激光頭
1)焦點可自動調節，適用多種焦距；
2)電容式傳感、全自動隨動系統；
3)采用復合鏡片、內置水冷結構；
4)準直和聚焦組件的雙水冷恒溫保證；
5)采用抽屜式鏡座，更換保護鏡片快速； 平滑高效氣流設計；
6)適配各種光纖激光器；
7)短、長焦距通用，可實現薄或厚板良好的切割效果；
8)全部配備準直保護鏡，更好的防護準直鏡；
9)QBH圓周位置可調，保證每臺QBH紅點朝外，方便光纖頭的插拔；
10）焦點位置可視窗口，確保輸入焦點與輸出焦點準確一致；
II. Main Features of IPG Fiber Lasers or Raycus Fiber Lasers:
Main Basic Functions
Fiber lasers have high electro-optical conversion efficiency, with a conversion efficiency of over 30%. This can significantly save power consumption during operation, reduce operating costs, and achieve high production efficiency.
When the laser operates, it only requires electrical energy and does not need additional gases for laser generation, resulting in low operation and maintenance costs.
Fiber lasers adopt semiconductor modular and redundant designs. There are no optical lenses in the resonant cavity, and no start-up time is required. They have the advantages of being free from adjustment, maintenance-free, and highly stable, reducing the cost of accessories and maintenance time, which is unparalleled by traditional lasers.
The output wavelength of fiber lasers is 1.06 microns, which is 1/10 of the CO2 wavelength. The output beam has good quality and high power density, which is conducive to the absorption of metal materials and has excellent cutting and welding capabilities, thereby reducing processing costs.
The optical path of the entire machine is transmitted through optical fibers, eliminating the need for complex light guiding systems such as mirrors. The optical path is simple, and the structure is stable. The external optical path is maintenance-free.
Since the light is exported through optical fibers, the design of the mechanical system becomes very simple, and it is very easy to integrate with robots or multi-dimensional workbenches.
After adding a shutter to the laser, one laser can serve multiple machines. Through optical fiber beam splitting, it can be divided into multiple channels for multiple machines to work simultaneously, making it easy to expand functions, and the upgrade is convenient and simple.
Fiber lasers are small in size, light in weight, and the working position is movable, with a small footprint.
Wave Thorn Black King Kong Automatic Zoom Laser Head
The focal point can be automatically adjusted, suitable for various focal lengths.
Capacitive sensing, fully automatic follow-up system.
Adopts composite lenses and a built-in water cooling structure.
Double water cooling and constant temperature assurance for the collimation and focusing components.
Adopts a drawer-type mirror base for quick replacement of the protective lens; smooth and efficient airflow design.
Compatible with various fiber lasers.
Both short and long focal lengths are applicable, and good cutting effects on thin or thick plates can be achieved.
All are equipped with collimation protection lenses to better protect the collimating mirror.
The circumferential position of QBH is adjustable to ensure that the red dot of each QBH faces outward, facilitating the insertion and extraction of the optical fiber head.
The focal point position has a visible window to ensure that the input focal point is accurately consistent with the output focal point.
三、HT-TP系列重載型數控光纖激光切管機簡介：

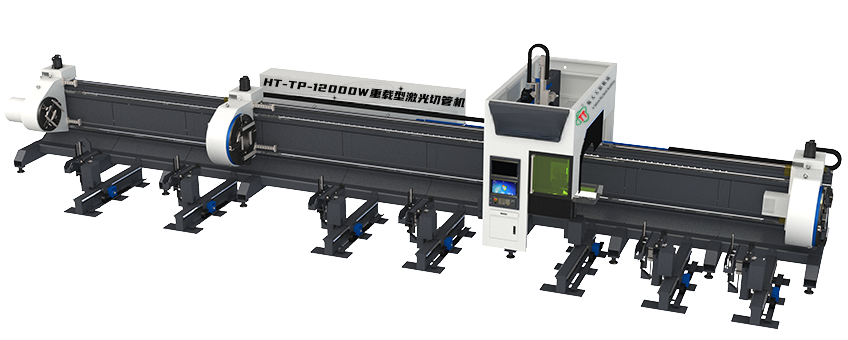

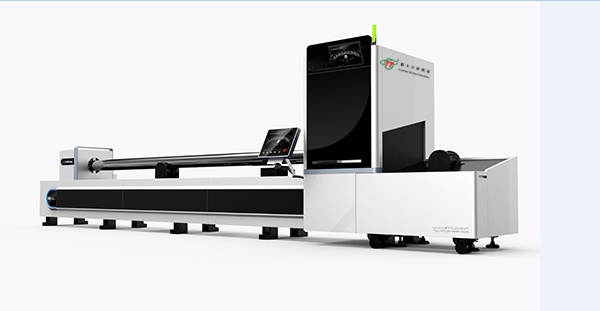

1、HT-TP系列重載型激光切管機。

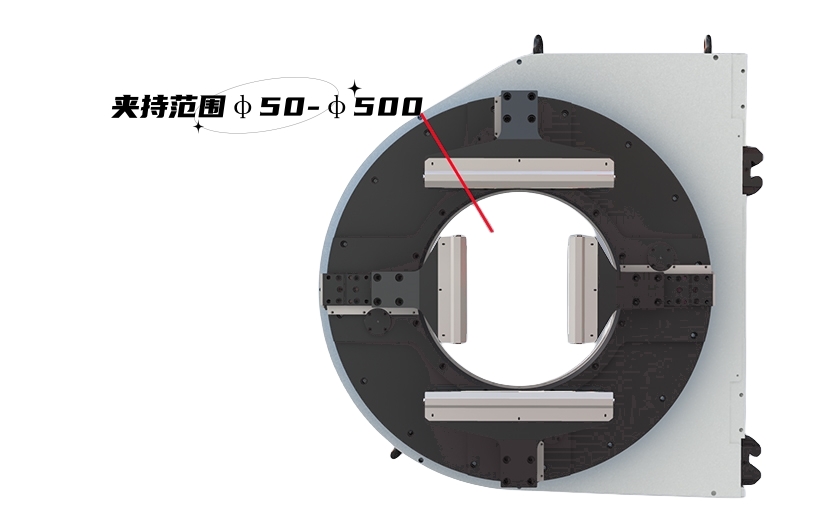

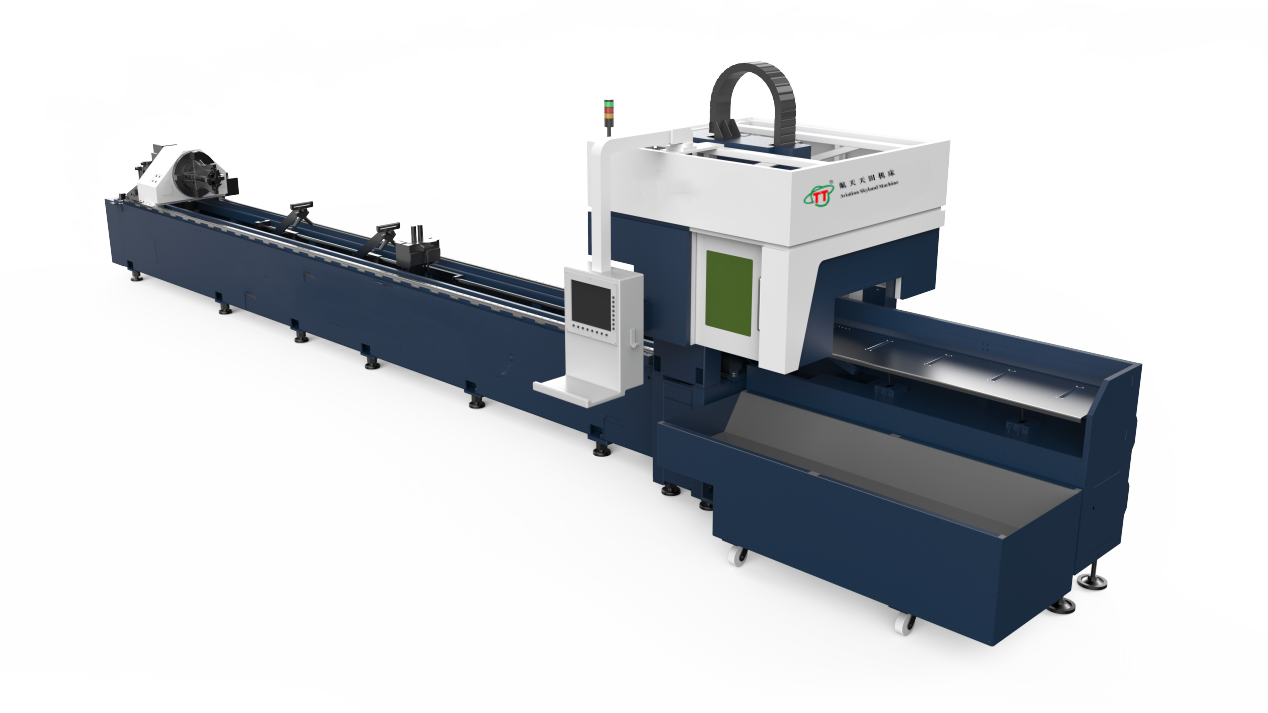

2、夾持范圍：φ50-φ500mm。
3、通用卡盤設計。
4、三卡盤結構設計高效率。
5、零尾料切割無浪費。
6、整管上料 整管下料。
7、最大功率：120000W。

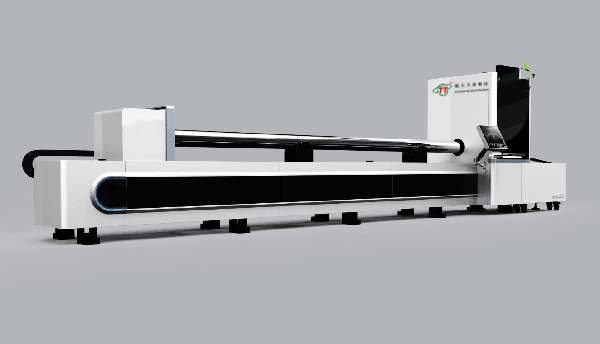

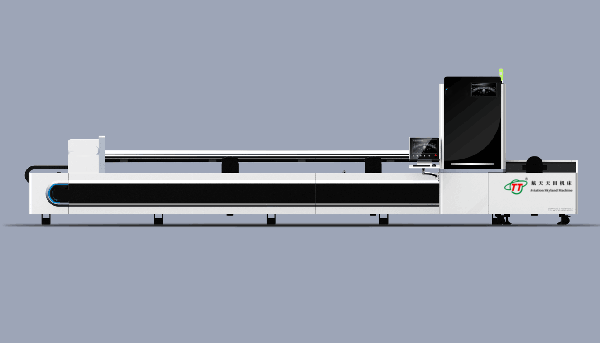

III. Introduction to the HT-TP Series Heavy-duty CNC Fiber Laser Pipe Cutting Machine:
The HT-TP series heavy-duty laser pipe cutting machine.
Clamping range: φ50-φ500mm.
Universal chuck design.
Three-chuck structural design for high efficiency.
Zero scrap cutting without waste.
Whole pipe loading and whole pipe unloading.
Maximum power: 120000W
四、產品介紹;
1、結構簡單穩定，擁有良好的密封性及運動特性，可夾持方管、圓管、橢圓管、工字鋼等材料。三卡盤加工模式，滿足切割頭在兩卡盤之間切割尾料，使尾料的切割精度更高，

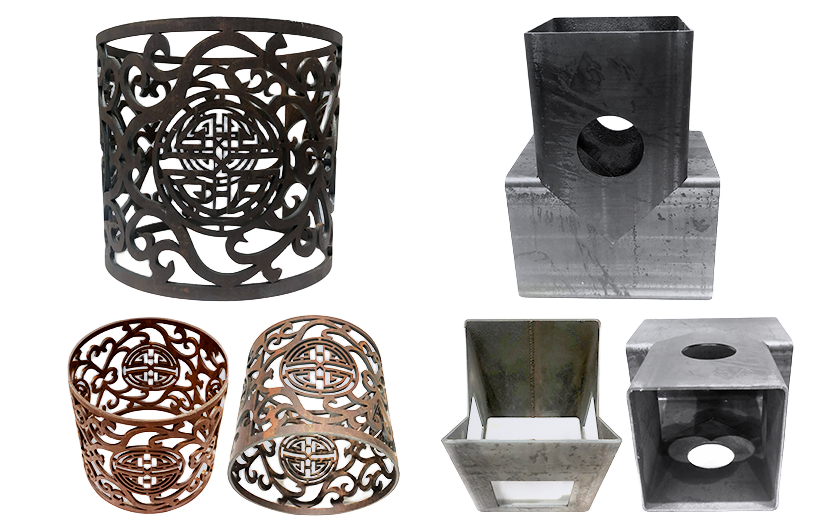

本激光切管機憑借對不同形狀、不同規格管材高效率、高質量的加工性能，廣泛應用于健身器材、汽車制造、保溫容器、機械加工、不銹鋼裝飾、辦公家具、農用機械、高空作業、五金制品等諸多行業。
IV. Product Introduction:
The structure is simple and stable, with good sealing performance and motion characteristics. It can clamp materials such as square pipes, round pipes, elliptical pipes, and I-beams. The three-chuck processing mode enables the cutting head to cut the remaining materials between the two chucks, achieving higher cutting accuracy for the remaining materials.
This laser pipe cutting machine, with its high-efficiency and high-quality processing performance for pipes of different shapes and specifications, is widely used in many industries such as fitness equipment manufacturing, automotive manufacturing, thermal insulation container production, mechanical processing, stainless steel decoration, office furniture manufacturing, agricultural machinery production, aerial work equipment manufacturing, and hardware product manufacturing。
2、負載大、范圍大
激光切管機的三卡盤結構，可避免因管料高速旋轉抖動而影響切割精度和效率。夾持范圍大，高承載力卡盤，最大夾持范圍可達500mm，最大承載可達2噸，更大填補重型管材切割需求，卡爪夾持力智能可調，夾持范圍可根據管材范圍快速更換。
2.Large load capacity and wide clamping range
The three-chuck structure of the laser pipe cutting machine can prevent the cutting accuracy and efficiency from being affected by the high-speed rotation and jitter of the pipe materials. It has a large clamping range. The high-load chuck can achieve a maximum clamping range of 500mm and a maximum load capacity of 2 tons, which can better meet the cutting requirements of heavy-duty pipes. The clamping force of the chuck jaws is intelligently adjustable, and the clamping range can be quickly adjusted according to the size of the pipes。
·

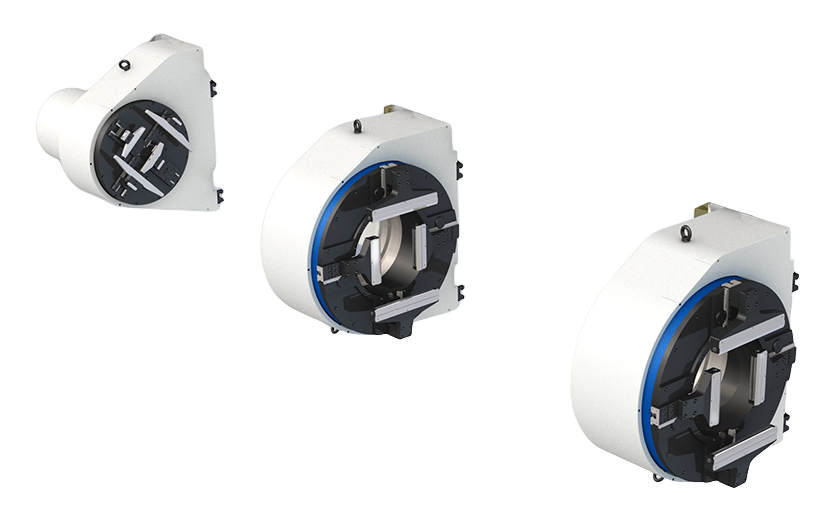

3、三卡盤結構 創新加工
1）三卡盤結構設計，加工過程采用三個卡盤夾持支撐，可對管材的彎曲、扭曲較大的管材調整夾持力進行矯正切割，可避免因管料后端抖動而影響前端切割精度，運行速度快、精度高、載重高。
3.Three-chuck structure for innovative processing
）With the design of the three-chuck structure, during the processing, three chucks are used for clamping and supporting. For pipes with significant bending and twisting, the clamping force can be adjusted for correction and cutting. It can prevent the jitter at the rear end of the pipe material from affecting the cutting accuracy at the front end. It features a fast running speed, high precision, and a high load-bearing capacity
·
2）重管多根上料 重載下料。

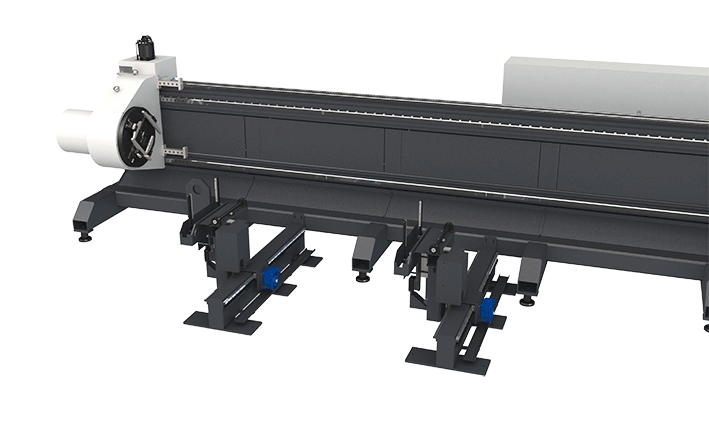

3）側掛式導軌結構，防塵效果好；上料架型材上料，V型架接料，無需等待自動化程度高，質量最優。 對夾下料，可防止管材在運輸和切割過程中滾動儲料輸送架，可存儲多根管材，方便人員運輸，節省時間。
2.）Multiple heavy pipes can be loaded and heavy-duty unloading can be carried out.
3.）The side-hung guide rail structure has a good dust-proof effect. The feeding rack is used for feeding with profile materials, and the V-shaped rack is used for receiving materials. There is no need to wait, and it has a high degree of automation and the best quality. The clamping unloading can prevent the pipes from rolling during transportation and cutting. The storage and conveying rack can store multiple pipes, which is convenient for personnel transportation and saves time
4）核心工藝 智能切割
5）采用MT智能切割系統，功能性更加完善和智能，提升蛙跳功能的速度和效率，集成快速穿孔模式及快速智能的穿孔模式，配置“航天天田”牌激光新一代工藝數據庫，可對不同類型、不同形狀的管材進行切割。重
4.）Core process for intelligent cutting
5.）The MT intelligent cutting system is adopted, making its functionality more complete and intelligent. It improves the speed and efficiency of the frog-jump function. It integrates a fast perforation mode and a fast and intelligent perforation mode, and is equipped with the laser new-generation process database of the "Amada" brand, which enables the cutting of pipes of different types and shapes
型激光切管機-性
五、HT-TP系列重載型數控光纖激光切管機技術參數（Technical Parameters of the HT-TP Series Heavy-duty CNC Fiber Laser Pipe Cutting Machine：）：
型號 | HT-TP-12050 | HT-TP-9050 | HT-TP-12036 | HT-TP-9036 | HT-TP-L12050 |
加工范圍 | φ50-508mm | φ50-508mm | φ50-360mm | φ50-360mm | φ50-508mm |
□50-350mm | □50-350mm | □50-260mm | □50-260mm | □50-350mm |
定位精度 | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
重復定位精度 | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
最大空運行速度 | 40m/min | 40m/min | 60m/min | 60m/min | 40m/min |
最大空轉速度 | 50r/min | 50r/min | 80r/min | 80r/min | 50r/min |
單根管材最大質量 | 2000kg | 2000kg | 1200kg | 1200kg | 1500kg |
最大一次性下料尺寸 | 12000mm | 9000mm | 12000mm | 9000mm | 12000mm |
推薦功率段 | 3000W-80000W |
| Model | Processing Range | Positioning Accuracy | Repeat Positioning Accuracy | Maximum Idle Running Speed | Maximum Idle Rotation Speed | Maximum Mass of a Single Pipe | Maximum One-time Unloading Size | Recommended Power Range |
|---|
| HT-TP-12050 | φ50-508mm; □50-350mm | ±0.03mm/m | ±0.05mm | 40m/min | 50r/min | 2000kg | 12000mm | 3000W - 20000W |
| HT-TP-9050 | φ50-508mm; □50-350mm | ±0.03mm/m | ±0.05mm | 40m/min | 50r/min | 2000kg | 9000mm | 3000W - 20000W |
| HT-TP-12036 | φ50-360mm; □50-260mm | ±0.03mm/m | ±0.05mm | 60m/min | 80r/min | 1200kg | 12000mm | 3000W - 20000W |
| HT-TP-9036 | φ50-360mm; □50-260mm | ±0.03mm/m | ±0.05mm | 60m/min | 80r/min | 1200kg | 9000mm | 3000W - 20000W |
| HT-TP-L12050 | φ50-508mm; □50-350mm | ±0.03mm/m | ±0.05mm | 40m/min | 50r/min | 1500kg | 12000mm | 3000W - 20000W |
備注：本資料所列數據為參考數據，如與機床實際數據不符，應以機床實際數據為準，以上參數如有變動，恕不另行通知，本公司保留對此資料的最終解釋權！
Remarks: The data listed in this document are for reference only. In case of any discrepancies between these data and the actual data of the machine tool, the actual data of the machine tool shall prevail. In case of any changes to the above parameters, no further notice will be given. Our company reserves the right to the final interpretation of this document!
