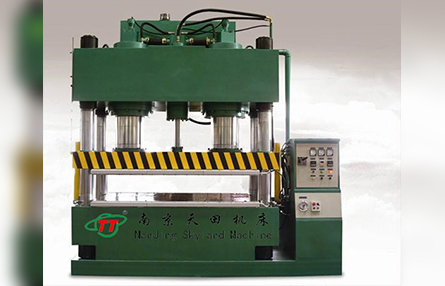

一、HT32 四柱油壓機通常具有以下性能特點：
堅固的結構設計：采用三梁四柱式結構，經計算機優化設計。這種結構簡單、經濟且實用，能夠提供穩定的支撐和可靠的壓力輸出，保證設備在長時間、高壓力的工作狀態下保持穩定的性能1。
先進的液壓控制系統：液壓控制采用插裝閥集成系統，具有動作可靠、使用壽命長、液壓沖擊小的優點，同時減少了連接管路與泄漏點，提高了系統的穩定性和可靠性，降低了維護成本1。
獨立的電氣控制系統：配備獨立的電氣控制系統，工作可靠，動作直觀，維修方便。通過按鈕集中控制，具備調整、半自動等操作方式，方便操作人員根據不同的工藝需求進行靈活設置和操作1。
靈活的工藝調整功能：可通過操作面板選擇，實現定程、定壓兩種成形工藝，并具有保壓延時等功能?；瑝K的工作壓力、空載快速下行和慢速工進的行程范圍均可根據工藝需要在規定范圍內進行調整，以適應不同的加工要求，提高了設備的通用性和適應性1。
良好的安全性能：設置了多種安全保護裝置，如急停按鈕，按下后壓機立即停止；滑塊在上、下限位處均設有限位開關，防止滑塊超出行程范圍；在活塞式油缸下腔設置液壓支承保險回路，液壓系統中設有安全溢流閥，確保壓機不會超載工作而損壞，此外還配備雙手操作按鈕，避免單人操作時可能出現的安全隱患2。
廣泛的適用性：適用于金屬材料的拉伸、沖載（需選配沖載緩沖裝置）、彎曲、翻邊、冷擠壓等多種沖壓工藝，還可用于校正、壓裝、粉末制品和磨料制品的壓制成型，以及塑料制品、絕緣材料的壓制成型，能滿足不同行業、不同產品的加工需求。
I:Performance Characteristics of HT32 Four-column Hydraulic Press
Robust structural design: Adopting a three-beam and four-column structure, which is optimized through computer design. This structure is simple, economical and practical, and can provide stable support and reliable pressure output, ensuring stable performance of the equipment under long-term and high-pressure working conditions.
Advanced hydraulic control system: The hydraulic control uses an integrated cartridge valve system, which has the advantages of reliable action, long service life and small hydraulic shock. At the same time, it reduces the connecting pipelines and leakage points, improves the stability and reliability of the system, and reduces the maintenance cost.
Independent electrical control system: Equipped with an independent electrical control system, which is reliable in operation, intuitive in action and convenient for maintenance. Controlled centrally by buttons, it has operation modes such as adjustment and semi-automatic, which is convenient for operators to flexibly set and operate according to different process requirements.
Flexible process adjustment function: It can select through the operation panel to achieve two forming processes of fixed stroke and fixed pressure, and has functions such as pressure maintaining and time delay. The working pressure of the slider, and the stroke range of no-load fast downward movement and slow working feed can be adjusted within the specified range according to process needs, improving the versatility and adaptability of the equipment.
Good safety performance: A variety of safety protection devices are set up, such as an emergency stop button, which will immediately stop the press when pressed; upper and lower limit switches are set at the upper and lower limits of the slider to prevent the slider from exceeding the stroke range; a hydraulic support and insurance circuit is set in the lower cavity of the piston-type oil cylinder, and a safety relief valve is set in the hydraulic system to ensure that the press will not be damaged due to overload operation. In addition, double-hand operation buttons are equipped to avoid potential safety hazards during single-person operation.
Wide applicability: It is suitable for a variety of stamping processes such as stretching, punching (punching buffer device needs to be selected), bending, flanging and cold extrusion of metal materials. It can also be used for calibration, press fitting, compression molding of powder products and abrasive products, as well as compression molding of plastic products and insulating materials, and can meet the processing needs of different industries and different products。
二、HT32系列四柱液壓機技術參數： 型 號 | 單位 | 40T | 63T | 100T | 200T | 315T | 400T | 500T | 630T | 1000T |
公稱力 | KN | 400 | 630 | 1000 | 2000 | 3150 | 4000 | 5000 | 6300 | 10000 |
頂出力 | KN | 63 | 100 | 200 | 400 | 630 | 630 | 1000 | 1250 | 1000 |
液體最大工作壓力 | Mpa | 24.5 | 25 | 26．3 | 25 | 25 | 25 | 25.5 | 25 | 25 |
滑塊行程 | mm | 400 | 500 | 600 | 700 | 800 | 800 | 900 | 900 | 9000 |
最大開口高度 | mm | 600 | 700 | 900 | 1100 | 1200 | 1400 | 1500 | 1500 | 1500 |
頂出行程 | mm | 120 | 160 | 200 | 250 | 300 | 300 | 300 | 400 | 400 |
滑塊速度 | 空程下行 | m/s | 40 | 76 | 100 | 100 | 100 | 100 | 100 | >100 | 100 |
工作 | m/s | 10 | 10 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 10 | 12 |
回程 | m/s | 60 | 60 | 60 | 70 | 70 | 70 | 80 | 65 | 80 |
工作臺尺寸 | 左右 | mm | 500 | 580 | 710 | 900 | 1260 | 1300 | 1400 | 1500 | 1500 |
前后 | mm | 460 | 500 | 580 | 900 | 1200 | 1300 | 1400 | 1500 | 1500 |
機床
外形尺寸 | 左右 | mm | 970 | 2040 | 2150 | 3040 | 3250 | 3250 | 4100 | 4390 | 2340 |
前后 | mm | 1290 | 1200 | 1250 | 1600 | 1600 | 1600 | 2420 | 2520 | 3000 |
地面上高度 | mm | 2525 | 3165 | 3570 | 4175 | 4400 | 4550 | 5348 | 5600 | 5800 |
電機功率 | KW | 5.5 | 5.5 | 7.5 | 18.5 | 22 | 22 | 37 | 45 | 68 |
總重量 | T | 2 | 3.2 | 4 | 10 | 14 | 20 | 27 | 38 | 48 |
| Model | Unit | 40T | 63T | 100T | 200T | 315T | 400T | 500T | 630T | 1000T |
|---|
| Nominal Force | KN | 400 | 630 | 1000 | 2000 | 3150 | 4000 | 5000 | 6300 | 10000 |
| Ejector Force | KN | 63 | 100 | 200 | 400 | 630 | 630 | 1000 | 1250 | 1000 |
| Maximum Working Pressure of Liquid | Mpa | 24.5 | 25 | 26.3 | 25 | 25 | 25 | 25.5 | 25 | 25 |
| Stroke of Slider | mm | 400 | 500 | 600 | 700 | 800 | 800 | 900 | 900 | 9000 |
| Maximum Open Height | mm | 600 | 700 | 900 | 1100 | 1200 | 1400 | 1500 | 1500 | 1500 |
| Stroke of Ejection | mm | 120 | 160 | 200 | 250 | 300 | 300 | 300 | 400 | 400 |
| Speed of Slider (Downward in No-load) | m/s | 40 | 76 | 100 | 100 | 100 | 100 | 100 | >100 | 100 |
| Speed of Slider (During Working) | m/s | 10 | 10 | 8 - 15 | 8 - 15 | 8 - 15 | 8 - 15 | 8 - 15 | 10 | 12 |
| Speed of Slider (Return Stroke) | m/s | 60 | 60 | 60 | 70 | 70 | 70 | 80 | 65 | 80 |
| Dimension of Worktable (Left-Right) | mm | 500 | 580 | 710 | 900 | 1260 | 1300 | 1400 | 1500 | 1500 |
| Dimension of Worktable (Front-Back) | mm | 460 | 500 | 580 | 900 | 1200 | 1300 | 1400 | 1500 | 1500 |
| Dimension of Machine Tool (Left-Right) | mm | 970 | 2040 | 2150 | 3040 | 3250 | 3250 | 4100 | 4390 | 2340 |
| Dimension of Machine Tool (Front-Back) | mm | 1290 | 1200 | 1250 | 1600 | 1600 | 1600 | 2420 | 2520 | 3000 |
| Height of Machine Tool above the Ground | mm | 2525 | 3165 | 3570 | 4175 | 4400 | 4550 | 5348 | 5600 | 5800 |
| Motor Power | KW | 5.5 | 5.5 | 7.5 | 18.5 | 22 | 22 | 37 | 45 | 68 |
| Total Weight | T | 2 | 3.2 | 4 | 10 | 14 | 20 | 27 | 38 | 48 |
備注：本資料所列數據為參考數據，如與機床實際數據不符，應以機床實際數據為準，以上參數如有變動，恕不另行通知，本公司保留對此資料的最終解釋權！
Remarks: The data listed in this document are for reference only. In case of any discrepancy with the actual data of the machine tool, the actual data of the machine tool shall prevail. The above parameters are subject to change without prior notice, and our company reserves the right to the final interpretation of this document。
