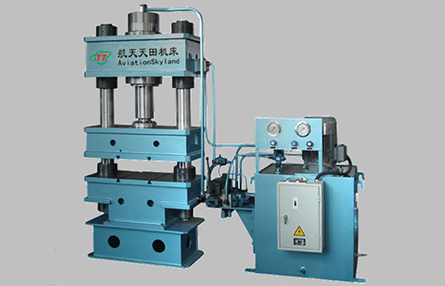

HT28 油缸帶頂出的四柱油壓機性能介紹：
一、用途：
本系列的液壓機適用于可塑性材料的壓制工藝，如沖壓、彎曲、翻邊、薄板拉伸等，還適用于校正、壓裝、粉末制品成型以及非金屬材料的壓制成型。
二、特點：
HT28 油缸帶頂出的四柱油壓機通常具有以下性能特點：
結構堅固穩定：四柱式結構設計，搭配合理的油缸配置，能夠承受較大的工作壓力，運行穩定可靠。機身采用優質材料制造，經過嚴格的加工和處理工藝，具有良好的剛性和強度，可確保長期使用過程中設備的精度和穩定性。
頂出功能實用：配備的油缸頂出裝置，頂出力大小適中，可滿足多種工藝需求。頂出行程可根據實際加工情況進行調整，操作方便。頂出動作平穩，能夠精確控制頂出的位置和力度，保證工件的加工質量和生產效率。
液壓系統高效：采用先進的液壓系統，由性能可靠的油泵、油缸及各種液壓閥等組成。系統具有良好的密封性，可有效防止泄漏，保證液壓油的清潔度，延長液壓元件的使用壽命。液壓系統的壓力、流量可根據工藝要求進行調節，實現快速、穩定的工作循環，提高生產效率。
電氣控制智能：配備智能化的電氣控制系統，操作界面簡潔明了?？蓪?shí)現手動、半自動等多種操作模式，方便操作人員根據不同的加工要求進行選擇。控制系統具有故障診斷和報警功能，能夠及時發現和排除故障，保證設備的正常運行。
安全性能良好：設置了多種安全保護裝置，如急停按鈕、上下限位開關等，可有效防止設備在運行過程中出現意外情況，保障操作人員的人身安全和設備的正常運行。同時，設備的防護欄、防護罩等部件齊全，可避免操作人員接觸到危險部位。
適用范圍廣泛：適用于金屬材料的拉伸、彎曲、翻邊、校正、壓裝等多種加工工藝，也可用于塑料、橡膠等非金屬材料的成型加工?？筛鶕?jù)不同的工藝要求，配備相應的模具，滿足不同產品的生產需求。
維護保養方便：設備的結構設計便于維護和保養，各部件的安裝位置合理，易于檢查和維修。液壓系統的元件布局緊湊，便于更換和調整。同時，設備的潤滑系統可自動或手動進行潤滑，減少部件的磨損，延長設備的使用壽命。
8.本系列液壓機具有繼電器控制和PLC控制兩種電氣控制系統，有調整、手動及半自動三種操作方式，可實現壓和定制兩種工藝方式。定壓成型時及自動回程動作。工作臺中間裝有頂出裝置，除頂出制品外，可作為液壓墊用于反拉伸制件餓成型工藝，其他工作壓力與行程，可根據工藝需要，在規定范圍內調整。
三、HT28 油缸帶頂出的四柱油壓機主要由機身、液壓系統、電氣控制系統等部分組成，其工作原理如下：
動力傳遞：電機驅動油泵運轉，將液壓油從油箱中吸出并加壓，形成高壓油液。高壓油液通過油管輸送到各個液壓元件，為油壓機的工作提供動力。
主油缸工作：當需要進行壓制工作時，電氣控制系統控制相應的電磁換向閥動作，使高壓油液進入主油缸的無桿腔，推動主油缸的活塞下行，從而帶動滑塊（連接在活塞上）向下運動，對放在工作臺上的工件施加壓力，實現壓制工藝。同時，主油缸有桿腔的油液通過電磁換向閥流回油箱。在壓制過程中，可通過調節液壓系統中的溢流閥來控制油液壓力，以滿足不同的壓制力要求。
頂出油缸工作：當壓制完成需要頂出工件時，電氣控制系統控制另一組電磁換向閥動作，使高壓油液進入頂出油缸的無桿腔，推動頂出油缸的活塞向上運動，頂出桿伸出，將工件從模具中頂出。頂出油缸有桿腔的油液則通過電磁換向閥流回油箱。頂出的力度和行程可通過調節相應的壓力閥和行程開關來控制。
回程：壓制和頂出完成后，電磁換向閥再次動作，使主油缸和頂出油缸的油路換向。主油缸的有桿腔進入高壓油液，推動活塞上行，滑塊回程至初始位置；頂出油缸的有桿腔進入高壓油液，使頂出桿縮回至初始位置。此時，油缸無桿腔的油液流回油箱。
保壓與泄壓：在壓制過程中，若需要保持一定的壓力一段時間，液壓系統可通過保壓回路實現。保壓時，油泵停止供油，由蓄能器或單向閥等元件保持系統壓力。當工作完成后，需要對系統進行泄壓，以防止在拆卸模具或進行其他操作時發生危險。泄壓過程通過相應的泄壓閥來實現，緩慢釋放系統中的高壓油液，使系統壓力降至安全范圍。
Performance Introduction of the Four-column Hydraulic Press with a Top-out Cylinder of Model HT28
I. Purpose:
This series of hydraulic presses is suitable for the pressing processes of malleable materials, such as stamping, bending, flanging, thin plate stretching, etc. It is also suitable for processes like calibration, press fitting, molding of powder products, as well as the compression molding of non-metallic materials.
II. Features:
The four-column hydraulic press with a top-out cylinder of model HT28 typically has the following performance characteristics:
Solid and Stable Structure: With a four-column structural design and a reasonable cylinder configuration, it can withstand a large working pressure and operate stably and reliably. The fuselage is made of high-quality materials and undergoes strict processing and treatment processes, having good rigidity and strength, which can ensure the accuracy and stability of the equipment during long-term use.
Practical Top-out Function: Equipped with a cylinder top-out device, the top-out force is moderate and can meet various process requirements. The top-out stroke can be adjusted according to the actual processing situation, and the operation is convenient. The top-out action is smooth, and the top-out position and force can be precisely controlled to ensure the processing quality of workpieces and production efficiency.
Efficient Hydraulic System: Adopting an advanced hydraulic system, it is composed of reliable oil pumps, cylinders, and various hydraulic valves, etc. The system has good sealing performance, which can effectively prevent leakage, ensure the cleanliness of the hydraulic oil, and extend the service life of hydraulic components. The pressure and flow rate of the hydraulic system can be adjusted according to process requirements, achieving a fast and stable working cycle and improving production efficiency.
Intelligent Electrical Control: Equipped with an intelligent electrical control system, the operation interface is simple and clear. It can achieve multiple operation modes such as manual and semi-automatic, which is convenient for operators to select according to different processing requirements. The control system has functions of fault diagnosis and alarm, which can timely detect and troubleshoot faults to ensure the normal operation of the equipment.
Good Safety Performance: A variety of safety protection devices are set up, such as emergency stop buttons, upper and lower limit switches, etc., which can effectively prevent unexpected situations during the operation of the equipment, ensuring the personal safety of operators and the normal operation of the equipment. At the same time, complete components such as protective fences and protective covers of the equipment can prevent operators from coming into contact with dangerous parts.
Wide Application Range: It is suitable for various processing processes of metal materials, such as stretching, bending, flanging, calibration, press fitting, etc., and can also be used for the molding processing of non-metallic materials such as plastics and rubbers. Corresponding molds can be equipped according to different process requirements to meet the production needs of different products.
Convenient Maintenance: The structural design of the equipment is convenient for maintenance. The installation positions of each component are reasonable, making it easy to inspect and repair. The components of the hydraulic system are compactly arranged, which is convenient for replacement and adjustment. At the same time, the lubrication system of the equipment can be lubricated automatically or manually to reduce the wear of components and extend the service life of the equipment.
This series of hydraulic presses has two types of electrical control systems, namely relay control and PLC control, and has three operation modes: adjustment, manual, and semi-automatic. It can achieve two process modes: pressing and customized. During fixed-pressure molding, there is an automatic return action. A top-out device is installed in the middle of the worktable. In addition to ejecting products, it can be used as a hydraulic cushion for the molding process of reverse stretching parts. The working pressure and stroke can be adjusted within the specified range according to process requirements.
III. The four-column hydraulic press with a top-out cylinder of model HT28 is mainly composed of parts such as the fuselage, hydraulic system, and electrical control system, and its working principle is as follows:
Power Transmission: The motor drives the oil pump to operate, sucking out and pressurizing the hydraulic oil from the oil tank to form high-pressure oil. The high-pressure oil is transported to each hydraulic component through the oil pipe, providing power for the operation of the hydraulic press.
Operation of the Main Cylinder: When a pressing operation is required, the electrical control system controls the corresponding electromagnetic directional valve to act, allowing the high-pressure oil to enter the rodless cavity of the main cylinder, pushing the piston of the main cylinder to move downward, thereby driving the slider (connected to the piston) to move downward and apply pressure to the workpiece placed on the worktable to achieve the pressing process. At the same time, the oil in the rod chamber of the main cylinder flows back to the oil tank through the electromagnetic directional valve. During the pressing process, the oil pressure can be controlled by adjusting the relief valve in the hydraulic system to meet different pressing force requirements.
Operation of the Top-out Cylinder: When the workpiece needs to be ejected after the pressing is completed, the electrical control system controls another set of electromagnetic directional valves to act, allowing the high-pressure oil to enter the rodless cavity of the top-out cylinder, pushing the piston of the top-out cylinder to move upward, and the ejector rod extends to eject the workpiece from the mold. The oil in the rod chamber of the top-out cylinder flows back to the oil tank through the electromagnetic directional valve. The top-out force and stroke can be controlled by adjusting the corresponding pressure valve and travel switch.
Return Stroke: After the pressing and top-out are completed, the electromagnetic directional valve acts again to reverse the oil circuit of the main cylinder and the top-out cylinder. The high-pressure oil enters the rod chamber of the main cylinder, pushing the piston to move upward, and the slider returns to the initial position; the high-pressure oil enters the rod chamber of the top-out cylinder, making the ejector rod retract to the initial position. At this time, the oil in the rodless cavity of the cylinder flows back to the oil tank.
Pressure Maintaining and Pressure Relief: During the pressing process, if it is necessary to maintain a certain pressure for a period of time, the hydraulic system can achieve this through the pressure maintaining circuit. During pressure maintaining, the oil pump stops supplying oil, and components such as the accumulator or check valve maintain the system pressure. After the work is completed, the system needs to be depressurized to prevent danger during mold disassembly or other operations. The pressure relief process is achieved through the corresponding pressure relief valve, slowly releasing the high-pressure oil in the system to reduce the system pressure to a safe range。
四、技術參數（Technical Parameters）：
參數名稱 | | |
| | | | | | | | | | | | | | | |
公稱力 | | | | | | | | | | | | | | | | | |
頂出力 | | | | | | | | | | | | | | | | | |
液體最大工作壓力 | | | | | | | | | | | | | | | | | |
滑塊行程 | | | | | | | | | | | | | | | | | |
頂出行程 | | | | | | | | | | | | | | | | | |
滑塊下平面至工作臺面最大距離 | | | | | | | | | | | | | | | | | |
滑塊行程速度 | 空 程 下 行 | | | | | | | | | | | | | | | | | |
工 作 | | | | | | | | | | | | | | | | | |
回 程 | | | | | | | | | | | | | | | | | |
工作臺尺寸 | 左 右 | | | | | | | | | | | | | | | | | |
前 后 | | | | | | | | | | | | | | | | | |
機器外形尺寸 | 左 右 | | | | | | | | | | | | | | | | | |
前 后 | | | | | | | | | | | | | | | | | |
地面上高度 | | | | | | | | | | | | | | | | | |
電機 總功率 | | | | | | | | | | | | | | | | | |
機器重量 | | | | | | | | | | | | | | | | | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Parameter Name | Unit | HT 32-40A | HT 32-63 | HT 32-100 | HT 32-100A | HT 32-160 | HT 32-160C | HT 32-200 | HT 32-315 | HT32-400 | HT 32-500 | HT 32-500C | HT 32-630 | HT 32-800 | HT 32-1000 | HT 32-1250 | HT 32-1600 |
|---|
| Nominal Force | KN | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2000 | 3150 | 4000 | 5000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Ejector Force | KN | 120 | 190 | 190 | 190 | 240 | 240 | 400 | 630 | 800 | 1000 | 1000 | 1000 | 1600 | 2000 | 2000 | 2000 |
| Maximum Working Pressure of Liquid | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Stroke of Slider | mm | 350 | 450 | 600 | 600 | 700 | 700 | 700 | 800 | 800 | 900 | 900 | 900 | 800 | 900 | 900 | 900 |
| Stroke of Ejection | mm | 150 | 200 | 200 | 200 | 200 | 200 | 250 | 300 | 300 | 350 | 350 | 350 | 450 | 450 | 450 | 450 |
| Maximum Distance from the Lower Plane of the Slider to the Worktable Surface | mm | 700 | 800 | 900 | 900 | 1000 | 1000 | 1100 | 1250 | 1350 | 1500 | 1500 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Speed of Slider Stroke (Downward in No-load) | mm/s | 50 | 100 | 22 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 80 | 80 | 80 | 80 |
| Speed of Slider Stroke (During Working) | mm/s | 25 | 25 | 14 | 16 | 10 | 10 | 18 | 12 | 10 | 15 | 15 | 12 | 12 | 6-10 | 6-10 |
|
| Speed of Slider Stroke (Return Stroke) | mm/s | 50 | 80 | 50 | 80 | 50 | 50 | 80 | 60 | 45 | 80 | 80 | 50 | 50 | 45 | 40 |
|
| Dimension of Worktable (Left-Right) | mm | 500 | 560 | 680 | 680 | 750 | 1000 | 950 | 1250 | 1200 | 1400 | 2200 | 1400 | 1500 | 1530 | 1700 | 2000 |
| Dimension of Worktable (Front-Back) | mm | 460 | 500 | 580 | 580 | 640 | 800 | 900 | 1120 | 1200 | 1400 | 1400 | 1200 | 1400 | 1600 | 1600 | 1600 |
| Dimension of Machine Appearance (Left-Right) | mm | 1160 | 2400 | 2500 | 2500 | 2700 | 2700 | 2825 | 3235 | 3235 | 4060 | 6500 | 4200 | 4800 | 5250 | 5250 | 5800 |
| Dimension of Machine Appearance (Front-Back) | mm | 900 | 1400 | 1500 | 1500 | 1700 | 1700 | 2600 | 2200 | 2200 | 3525 | 3800 | 4200 | 4000 | 3800 | 3800 | 4000 |
| Height of Machine above the Ground | mm | 2250 | 3100 | 2950 | 3150 | 3400 | 3400 | 3725 | 4295 | 4500 | 4995 | 4740 | 5600 | 6000 | 5800 | 6000 | 6200 |
| Total Power of Motor | Kw | 4 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 15 | 15 | 15 | 30 | 30 | 45 | 60 | 75.5 | 75.5 | 75.5 |
| Weight of Machine | Kg | 2000 | 3000 | 4000 | 4000 | 6000 | 6000 | 11000 | 14000 | 22000 | 28000 | 38000 | 34000 | 40000 | 48000 |
|
|
本資料所列數據為參考數據，如與機床實際數據不符，應以機床實際數據為準，以上參數如有變動，恕不另行通知，本公司保留對此資料的最終解釋權!
Remarks: The data listed in this document are for reference only. In case of any discrepancy with the actual data of the machine tool, the actual data of the machine tool shall prevail. The above parameters are subject to change without prior notice, and our company reserves the right to the final interpretation of this document。
