性能特點：

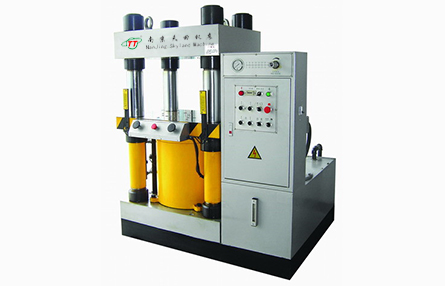

HT79系列簡易四柱油壓機采用手腳聯動操作。操作簡單。液壓系統采用集成插裝，結構緊湊，動作靈敏可靠。動力小噪聲低。
I. Performance Characteristics:
The HT79 series machine tools adopt the operation mode of combining hand and foot operations. It is simple to operate. The hydraulic system adopts integrated cartridge valves, featuring a compact structure, sensitive and reliable actions. It has small power consumption and low noise。
簡易四柱油壓機；應用；特點；工業生產 在現代工業生產中，液壓設備發揮著至關重要的作用。簡易四柱油壓機作為一種基礎且實用的液壓機械設備，憑借其獨特的優勢在眾多領域得到廣泛應用 。隨著制造業的不斷發展，對生產設備的靈活性、經濟性和高效性提出了更高要求，簡易四柱油壓機以其簡潔的結構、便捷的操作和廣泛的適用性，成為中小企業及小型加工車間實現產品成型加工的理想選擇。深入研究其應用與特點，有助于更好地發揮該設備的性能，推動相關產業的發展。 在金屬加工行業，簡易四柱油壓機是實現金屬成型的關鍵設備之一。在汽車零部件制造過程中，發動機缸體的初步成型需要精確的壓力控制，簡易四柱油壓機能夠通過穩定的壓力輸出，將金屬板材沖壓成所需的形狀。對于車身覆蓋件，如車門、引擎蓋等，其復雜的曲面形狀也可借助該設備與特定模具配合完成加工 。此外，在五金制品行業，從日常使用的金屬餐具到裝飾性金屬制品，簡易四柱油壓機都能高效地完成拉伸、彎曲等成型工序，滿足多樣化的市場需求。 塑料制品的生產離不開成型設備，簡易四柱油壓機在這一領域同樣表現出色。以塑料盆、塑料桶等日用品為例，將塑料原料顆粒放入模具型腔后，簡易四柱油壓機通過施加壓力使塑料在模具內受熱融化并填充型腔，冷卻后即可得到成型產品。對于塑料玩具生產，由于玩具形狀多樣，簡易四柱油壓機可通過更換不同模具，快速實現不同款式玩具的生產，且生產效率高，產品質量穩定 。 粉末冶金是通過將金屬粉末或其他粉末材料壓制成型來制備零件的工藝。簡易四柱油壓機在該領域主要用于粉末的壓制階段。在生產機械零件時，將混合均勻的金屬粉末放入模具中，利用油壓機施加高壓，使粉末顆粒之間緊密結合，形成具有一定形狀和強度的坯件。通過控制壓力大小和壓制時間，可以精確調整坯件的密度和尺寸精度，為后續的燒結等工序奠定基礎 。 橡膠制品的硫化成型過程需要在一定壓力和溫度條件下進行，簡易四柱油壓機為此提供了必要的壓力保障。在輪胎生產中，將混煉好的橡膠半成品放入輪胎模具后，油壓機迅速施加壓力并保持一定時間，使橡膠在模具內發生硫化反應，形成具有高強度和良好彈性的輪胎 。同樣，對于橡膠密封件、橡膠墊等產品，簡易四柱油壓機也能確保其在成型過程中獲得準確的形狀和尺寸，滿足不同工業設備的密封和減震需求。 簡易四柱油壓機采用經典的四柱式結構，主要由上橫梁、下橫梁、四根立柱以及活動橫梁組成。這種結構設計具有良好的對稱性和穩定性，能夠均勻承受工作過程中的壓力。上、下橫梁與立柱通過螺母或其他連接方式緊固，形成一個剛性框架，活動橫梁在立柱上可上下滑動，帶動模具進行壓制動作。相較于復雜的液壓設備結構，簡易四柱油壓機的零部件數量較少，制造工藝相對簡單，不僅降低了設備的制造成本，也便于安裝和維護 。 設備通常配備直觀的操作面板，操作人員只需經過簡單培訓即可熟練掌握操作方法。通過操作面板上的按鈕或手柄，可以輕松控制油壓機的啟動、停止、滑塊的升降以及壓力的調節等動作。此外，部分簡易四柱油壓機還具備半自動或自動操作模式，能夠根據預設程序自動完成壓制、保壓、回程等一系列動作，大大提高了生產效率，降低了操作人員的勞動強度 。 液壓系統是簡易四柱油壓機實現壓力輸出的核心部分，主要包括油泵、油缸、液壓閥等部件。油泵將電機的機械能轉化為液壓油的壓力能，通過油管輸送到油缸。在壓力控制方面，液壓系統配備了溢流閥、減壓閥等壓力控制元件，能夠根據不同的工藝要求精確調節系統壓力。無論是需要較大壓力的金屬成型加工，還是對壓力要求相對較低的塑料制品壓制，簡易四柱油壓機都能提供穩定的壓力輸出，確保產品成型質量的一致性 。 簡易四柱油壓機的一大顯著特點是其對不同生產需求的高度適應性。通過更換不同規格和形狀的模具，該設備可以快速切換生產不同類型的產品，從簡單的平板壓制到復雜的曲面成型都能勝任。同時，其壓制速度、行程等參數也可根據實際生產需要進行調整，滿足多樣化的工藝要求。這種靈活性使得簡易四柱油壓機在小批量、多品種的生產模式中具有獨特優勢 。 與大型復雜的液壓設備相比，簡易四柱油壓機的制造成本較低。由于其結構簡單，所需的零部件數量和加工工藝相對較少，降低了原材料和制造成本。在運行過程中，簡易四柱油壓機的功率需求較小，能源消耗低，進一步降低了生產成本。此外，其維護保養相對容易，零部件更換成本不高，使得設備的整體使用成本維持在較低水平，對于資金和技術實力相對有限的中小企業來說，具有較高的性價比 。 簡易四柱油壓機憑借其在金屬成型、塑料制品加工、粉末冶金、橡膠制品生產等領域的廣泛應用，以及結構簡單、操作方便、壓力穩定、適應性強和成本效益高等顯著特點，成為現代工業生產中不可或缺的重要設備。隨著工業技術的不斷進步和制造業需求的持續增長，簡易四柱油壓機將在優化結構設計、提升自動化程度、提高壓力控制精度等方面不斷發展和完善，進一步拓展其應用領域，為工業生產的高效、穩定運行提供更有力的支持。未來，對簡易四柱油壓機的研究和應用將朝著智能化、節能環保等方向深入發展，以更好地適應新時代制造業的發展需求 Simple Four-column Hydraulic Press; Application; Characteristics; Industrial Production In modern industrial production, hydraulic equipment plays a crucial role. As a fundamental and practical hydraulic machinery, the simple four-column hydraulic press has been widely applied in numerous fields due to its unique advantages. With the continuous development of the manufacturing industry, higher requirements have been put forward for the flexibility, economy, and efficiency of production equipment. Thanks to its simple structure, convenient operation, and wide applicability, the simple four-column hydraulic press has become an ideal choice for small and medium-sized enterprises as well as small processing workshops to achieve product molding and processing. In-depth research on its applications and characteristics helps to give full play to the performance of this equipment and promote the development of related industries. In the metal processing industry, the simple four-column hydraulic press is one of the key equipment for metal forming. During the manufacturing process of automotive parts, the preliminary forming of engine blocks requires precise pressure control. The simple four-column hydraulic press can stamp metal sheets into the required shapes through stable pressure output. For automotive body panels, such as car doors and hoods, their complex curved surfaces can also be processed with the help of this equipment in conjunction with specific molds. In addition, in the hardware products industry, the simple four-column hydraulic press can efficiently complete forming processes such as stretching and bending, from daily metal tableware to decorative metal products, meeting diverse market demands. The production of plastic products is inseparable from molding equipment, and the simple four-column hydraulic press also performs outstandingly in this field. Take daily necessities such as plastic basins and buckets as examples. After putting plastic raw material particles into the mold cavity, the simple four-column hydraulic press applies pressure to make the plastic melt and fill the cavity under heat. After cooling, the molded products can be obtained. For the production of plastic toys, due to the variety of toy shapes, the simple four-column hydraulic press can quickly produce different styles of toys by changing molds, with high production efficiency and stable product quality. Powder metallurgy is a process of preparing parts by pressing metal powders or other powder materials into shape. The simple four-column hydraulic press is mainly used in the powder pressing stage in this field. When producing mechanical parts, uniformly mixed metal powders are put into the mold, and the hydraulic press applies high pressure to make the powder particles combine closely, forming blanks with certain shapes and strengths. By controlling the pressure and pressing time, the density and dimensional accuracy of the blanks can be precisely adjusted, laying a foundation for subsequent processes such as sintering. The vulcanization molding process of rubber products requires certain pressure and temperature conditions, and the simple four-column hydraulic press provides the necessary pressure guarantee. In tire production, after putting the mixed rubber semi-finished products into the tire mold, the hydraulic press quickly applies pressure and maintains it for a certain period, so that the rubber undergoes a vulcanization reaction in the mold, forming tires with high strength and good elasticity. Similarly, for rubber seals, rubber pads and other products, the simple four-column hydraulic press can also ensure that they obtain accurate shapes and sizes during the molding process, meeting the sealing and shock absorption requirements of different industrial equipment. The simple four-column hydraulic press adopts the classic four-column structure, mainly composed of the upper crossbeam, lower crossbeam, four columns, and the movable crossbeam. This structural design has good symmetry and stability, and can evenly bear the pressure during the working process. The upper and lower crossbeams are fastened to the columns by nuts or other connection methods to form a rigid frame. The movable crossbeam can slide up and down on the columns, driving the mold to perform pressing actions. Compared with the structures of complex hydraulic equipment, the simple four-column hydraulic press has fewer components and relatively simple manufacturing processes, which not only reduces the manufacturing cost of the equipment but also facilitates installation and maintenance. The equipment is usually equipped with an intuitive operation panel, and operators can master the operation method proficiently after simple training. Through the buttons or handles on the operation panel, the start, stop, lifting of the slider, and pressure adjustment of the hydraulic press can be easily controlled. In addition, some simple four-column hydraulic presses also have semi-automatic or automatic operation modes, which can automatically complete a series of actions such as pressing, pressure maintaining, and return stroke according to the preset program, greatly improving production efficiency and reducing the labor intensity of operators. The hydraulic system is the core part of the simple four-column hydraulic press for pressure output, mainly including components such as oil pumps, cylinders, and hydraulic valves. The oil pump converts the mechanical energy of the motor into the pressure energy of the hydraulic oil and transports it to the cylinder through the oil pipe. In terms of pressure control, the hydraulic system is equipped with pressure control components such as relief valves and reducing valves, which can precisely adjust the system pressure according to different process requirements. Whether it is metal forming processing that requires a large amount of pressure or plastic product pressing with relatively low pressure requirements, the simple four-column hydraulic press can provide stable pressure output to ensure the consistency of product molding quality. One of the significant characteristics of the simple four-column hydraulic press is its high adaptability to different production needs. By changing molds of different specifications and shapes, the equipment can quickly switch to produce different types of products, and it is competent for both simple flat plate pressing and complex curved surface forming. At the same time, parameters such as its pressing speed and stroke can also be adjusted according to actual production needs to meet diversified process requirements. This flexibility gives the simple four-column hydraulic press unique advantages in the production mode of small batches and multiple varieties. Compared with large and complex hydraulic equipment, the simple four-column hydraulic press has a lower manufacturing cost. Due to its simple structure, it requires fewer components and relatively less complex processing techniques, reducing raw material and manufacturing costs. During operation, the simple four-column hydraulic press has a small power demand and low energy consumption, further reducing production costs. In addition, its maintenance is relatively easy, and the cost of replacing components is not high, keeping the overall use cost of the equipment at a low level. It has a high cost-performance ratio for small and medium-sized enterprises with limited capital and technical strength. With its extensive applications in metal forming, plastic products processing, powder metallurgy, rubber products production and other fields, as well as remarkable characteristics such as simple structure, convenient operation, stable pressure, strong adaptability, and high cost-effectiveness, the simple four-column hydraulic press has become an indispensable and important equipment in modern industrial production. With the continuous advancement of industrial technology and the continuous growth of manufacturing demands, the simple four-column hydraulic press will continue to develop and improve in terms of optimizing structural design, enhancing automation, and improving pressure control accuracy, further expanding its application areas and providing more powerful support for the efficient and stable operation of industrial production. In the future, the research and application of simple four-column hydraulic presses will develop in-depth towards intelligence, energy conservation, and environmental protection to better meet the development needs of the manufacturing industry in the new era 五、技術參數（Technical Parameters）：
參數名稱 | | | | | | | | | 公稱力 | | | | | | | | 液體最大工作壓力 | | | | | | | | 滑塊下平面距工作臺面最大距離 | | | | | | | | 滑塊運行參數 | 最大壓制力 | | | | | | | | 最大回程力 | | | | | | | | 最大行程 | | | | | | | | 頂出活塞運行參數 | 最大頂出力 | | | | | | | | 最大拉下力 | | | | | | | | 最大行程 | | | | | | | | 上中心油缸塞 運行參數 （任選部件） | 最大伸出力 | | | | | | | | 最大退回力 | | | | | | | | 最大行程 | | | | | | | | 下中心油缸活塞運行參數
（任選部件） | 最大伸出力 | | | | | | | | 最大退回力 | | | | | | | | 最大行程 | | | | | | | | 側油缸活運行參數 （任選部件） | 最大伸出力 | | | | | | | | 最大退回力 | | | | | | | | 最大行程 | | | | | | | | 工作臺面有效面積 | 左 右 | | | | | | | | 前 后 | | | | | | | | 主電機功率 | | | | | | | | 機器重量 | | | | | | | | 機器輪廓尺寸 | 左 右 | | | | | | | | 前 后 | | | | | | | | 地面以上高 | | | | | | | | (備注）：上中心油缸、下中心油缸、側油缸、浮動油缸等可根據產品結構特點為任選部件。
本資料所列數據為參考數據，如與機床實際數據不符，應以機床實際數據為準，
以上參數如有變動，恕不另行通知，本公司保留對此資料的最終解釋權! |
(Remarks): The upper central cylinder, lower central cylinder, side cylinder, floating cylinder, etc. are optional components according to the structural characteristics of the product.
The data listed in this information are reference data. In case of any discrepancy with the actual data of the machine tool, the actual data of the machine tool shall prevail. The above parameters are subject to change without prior notice, and our company reserves the right to the final interpretation of this information
|
