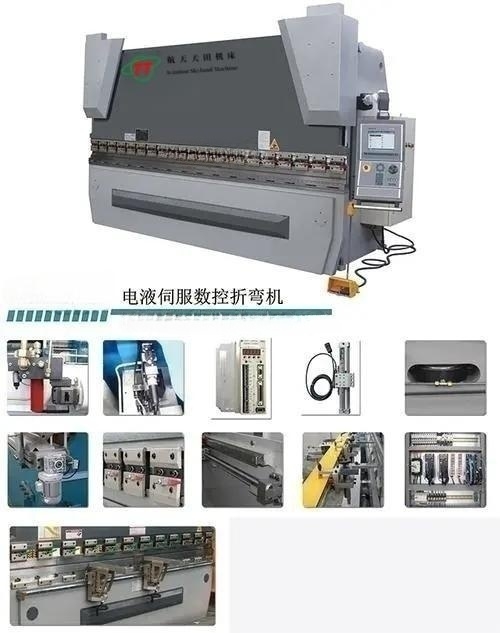

一：HTB (F)-DA53T (58T) 系列電液伺服數控折彎機是一種具有高精度、高效率的金屬加工設備，以下是其相關介紹
數控系統：采用荷蘭 DeLem-DA53T 或 DA58T 數控系統，也可選用瑞士 CYBELEC 系統。這些系統具有先進的技術，如 Delem 二維圖形編程設計工具，方便進行數控編程，可自動計算所有軸位置，一鍵生成數控程序，提高生產效率。系統還具備液壓工序指定功能，能減少機器調整和測試工作。此外，彩色 TFT 顯示和時尚的用戶界面清晰，操作便捷，USB 接口可快速備份產品和模具，DA-0ffine 為離線編程提供解決方案。
結構設計：
軸控制：標準為數控 4+1 軸，即 Y1、Y2、X、R＋V 軸。其中，Y1、Y2 軸用于控制滑塊兩側油缸，X 軸為后擋料的水平移動軸，R 軸用于控制后擋料的旋轉，V 軸為工作臺的撓度補償軸?？筛鶕?jù)用戶需要，將后定位控制擴展到六軸。
精度保障：
驅動與傳動：
模具安裝：上模選用快速夾緊裝置，減輕了工人的勞動強度，提高了生產效率。

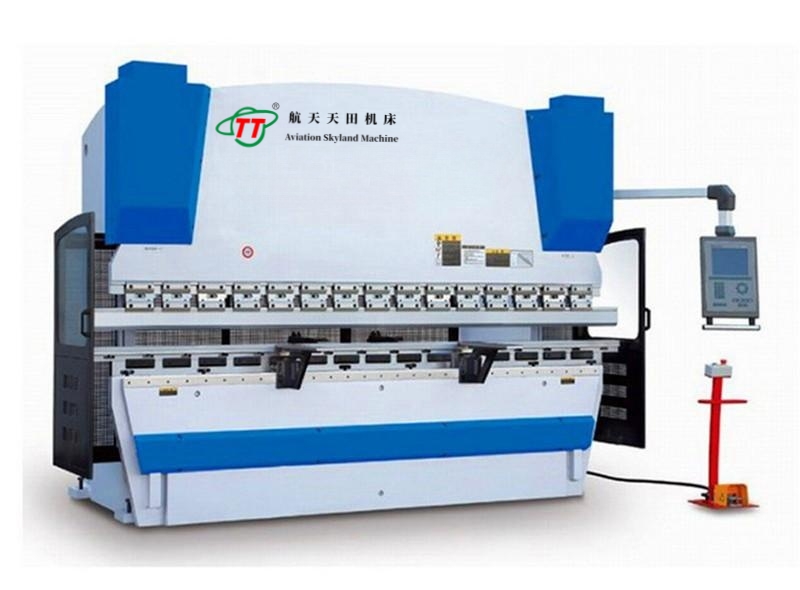

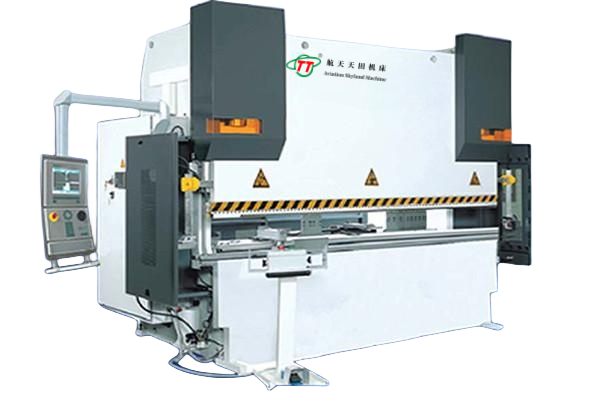

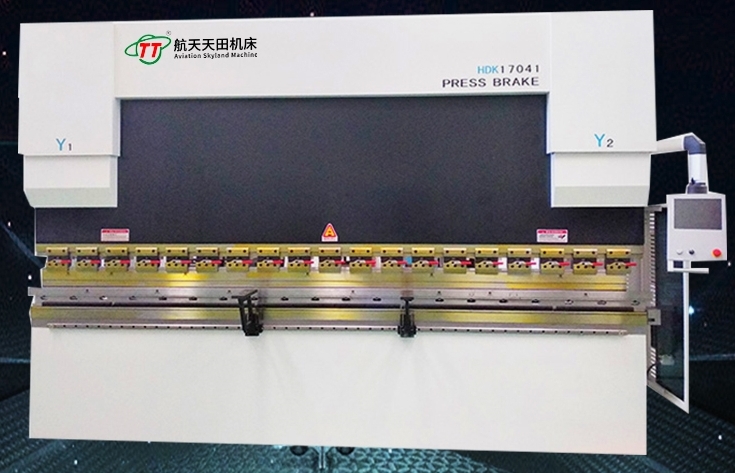

HTB(F)-DA53T(58T) Series Electro-Hydraulic Servo CNC Plate Bending Machine
The HTB(F)-DA53T(58T) series electro-hydraulic servo CNC plate bending machine is a metal processing equipment with high precision and high efficiency. The relevant introductions are as follows:
CNC System: It adopts the Dutch DeLem-DA53T or DA58T CNC system, and the Swiss CYBELEC system can also be selected. These systems are equipped with advanced technologies. For example, the Delem two-dimensional graphic programming design tool makes CNC programming convenient. It can automatically calculate the positions of all axes and generate CNC programs with one click, improving production efficiency. The system also has the function of specifying hydraulic processes, which can reduce the machine adjustment and testing work. In addition, the color TFT display and the stylish user interface are clear and easy to operate. The USB interface enables quick backup of products and molds, and DA-0ffine provides a solution for offline programming.
Structural Design:
The whole machine is of welded steel plate structure and has been treated by integral vibration. It is integrally processed with a single clamping, ensuring the rigidity and processing accuracy of the machine body.
The humanized boom design, based on the real-time Windows operating system, is equipped with a three-dimensional color graphic CNC system for plate bending machines, providing a user-friendly operation interface for users.
Axis Control: The standard is 4+1 CNC axes, namely Y1, Y2, X, R + V axes. Among them, the Y1 and Y2 axes are used to control the cylinders on both sides of the slider. The X axis is the horizontal movement axis of the rear stop. The R axis is used to control the rotation of the rear stop, and the V axis is the deflection compensation axis of the workbench. According to the user's needs, the control of the rear positioning can be extended to six axes.
Accuracy Assurance:
The electro-hydraulic servo system, in conjunction with the imported Swiss optical grating ruler, can accurately control the position and movement of the slider, achieving high-precision bending processing.
The automatic hydraulic deflection compensation system can eliminate the influence of the slider's bending on the quality of the workpiece, ensuring the flatness and precision of the workpiece.
Drive and Transmission:
The rear stop is driven by Taiwan HIWIN linear guides and ball screws, which is faster and more accurate.
The original imported integrated hydraulic control system reduces the installation of pipelines, overcomes the problem of oil leakage, and at the same time improves the stability and reliability of the system.
Die Installation: The upper die is equipped with a quick clamping device, which reduces the labor intensity of workers and improves production efficiency.
一、 性能：
采用荷蘭DeLem-DA53T(DA58T)或瑞士CYBELEC系統是基本的數控系統，具有高效率的性能。美觀現代、流線型鑄塑外殼, 優雅而實用, 允許在底部面板安裝用于機床操作的按鈕和選擇器開關。集成的DA-53T或(DA58T)數控系統有Delem二維圖形編程設計工具，方便進行數控編程。有液壓工序指定功能，可以讓機器調整和測試工作減少。按鍵一次就可以生成數控程序，自動計算所有的軸位置直接進行生產。
數控系統采用先進新技術，高柔性、操作便捷USB接口提供了快速備份產品和模具。彩色的TFT顯示和時尚的用戶界面清晰，可為快速編程提供方便。DA-0ffine為離線編程提供解決方案。
二、設備特點：
本機床采用荷蘭進口DeLem-DA53T(DA58T)數控系統或瑞士CYBELEC系統。
具有人性化吊臂；基于實時的windows操作系統，二維彩色圖形折彎機數控系統
DeLem-DA53T(DA58T)或瑞士CYBELEC折彎機數控系統為使用者提供友好操作界面，高效率編程方式，和引以自豪穩定性集成于一體，將大大提高數控折彎機的工作效率。
圖形編程技術秉承Delem或CYBELEC傳統的編程優勢，真實比例顯示工件、模具和機床。
數控系統包括2D圖形編程軟件，具有折彎工序自動計算、工件干涉檢測和自學習數據庫，數據庫運用將大大提高折彎精度。
全功能3D圖形編程軟件清晰展示真實機床模具配置以及折彎實現的可行性。
采用更高效率算法優化整個Y軸、X軸、R軸和補償V軸工作循環，使得Y軸、X軸、R軸和補償V軸循環的周期縮短，提高機床工作效率，同時對Y軸調整和控制更為方便。
The basic CNC systems are the Dutch DeLem-DA53T (DA58T) or the Swiss CYBELEC system, endowing the machine with high-efficiency performance. With a beautiful, modern and streamlined cast plastic shell, it is both elegant and practical, allowing buttons and selector switches for machine tool operation to be installed on the bottom panel.
The integrated DA-53T or (DA58T) CNC system is equipped with the Delem two-dimensional graphic programming design tool, which makes CNC programming convenient. It has the function of specifying hydraulic processes, which can reduce the machine adjustment and testing work. With just one press of a button, a CNC program can be generated, automatically calculating the positions of all axes for direct production.
The CNC system adopts advanced new technologies, featuring high flexibility and convenient operation. The USB interface provides a quick way to back up products and molds. The color TFT display and the stylish user interface are clear, facilitating quick programming. DA-0ffine provides a solution for offline programming.
This machine tool is equipped with the imported Dutch DeLem-DA53T (DA58T) CNC system or the Swiss CYBELEC system.
It has a humanized boom; it is based on the real-time Windows operating system and is equipped with a two-dimensional color graphic CNC system for plate bending machines.
The DeLem-DA53T (DA58T) or the Swiss CYBELEC CNC system for plate bending machines integrates a user-friendly operation interface, a high-efficiency programming method, and a proud stability, which will greatly improve the working efficiency of the CNC plate bending machine.
The graphic programming technology inherits the traditional programming advantages of Delem or CYBELEC, displaying workpieces, molds, and machine tools in their true proportions.
The CNC system includes a 2D graphic programming software, which has functions such as automatic calculation of bending processes, workpiece interference detection, and a self-learning database. The application of the database will greatly improve the bending accuracy.
The full-featured 3D graphic programming software clearly shows the configuration of the real machine tool molds and the feasibility of bending.
By adopting a more efficient algorithm, the working cycles of the entire Y-axis, X-axis, R-axis, and compensation V-axis are optimized, shortening the cycle periods of the Y-axis, X-axis, R-axis, and compensation V-axis, and improving the working efficiency of the machine tool. At the same time, it is more convenient to adjust and control the Y-axis.
三、設備性能介紹：（設備標配）
1、整機采用鋼板焊接結構，并經整體振動處理；
2、一次裝夾整體加工，保障機身的剛性和加工精度；

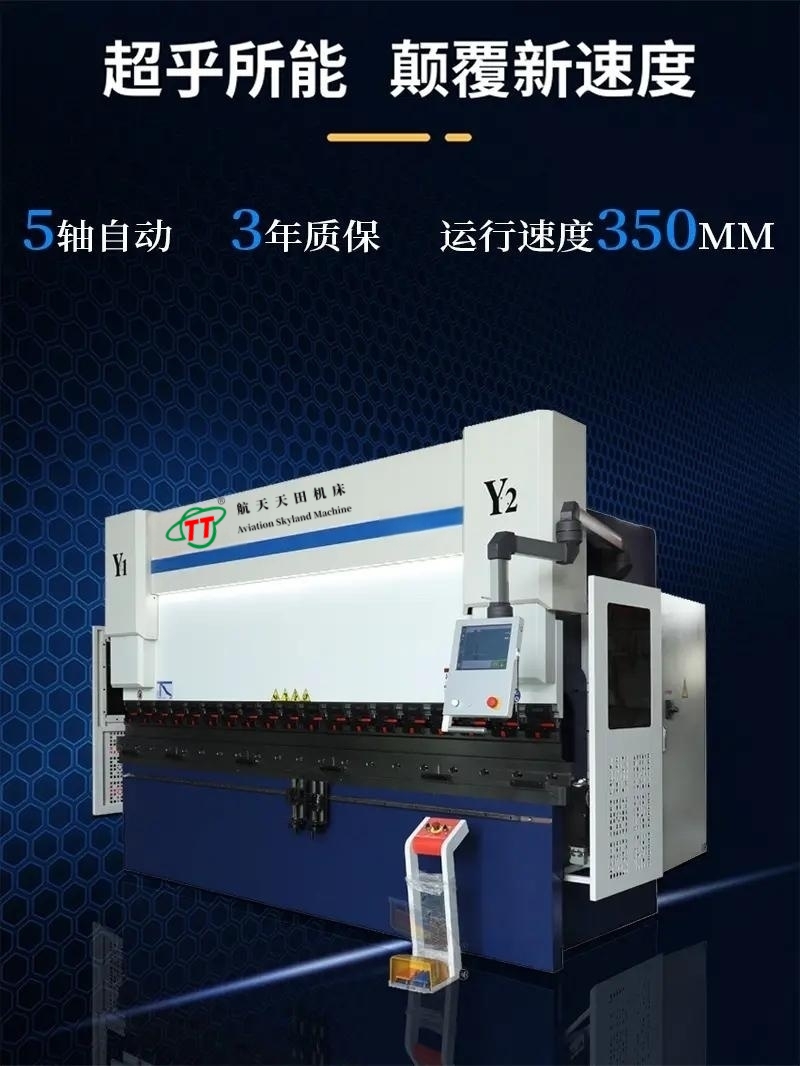

3、標準為數控4+1軸，Y1 、Y2、 X、R＋ V；
4、電液伺服系統配合瑞士進口光柵尺，折彎精度更高；
5、液壓撓度自動補給，消除滑塊彎形對工件質量的影響；
6、原裝進口集成液壓控制系統減少管路安裝，克服漏油；
7、后擋料采用臺灣HIWIN(上銀)直線導軌及滾珠絲杠驅動，速度更快精度更高；
8、上模選用快速夾緊，減輕工人勞動強度，提高生產效率；
9、可選配荷蘭DELEM系統或瑞士CYBELEC系統；
10、可根據用戶需要，后定位可控制六軸；
11、可選配液壓上模夾緊。
12、增加數控（軸）調節功能另行商議。
Ⅲ. Introduction to Equipment Performance (Standard Configuration of the Equipment)
The whole machine is of welded steel plate structure and has undergone integral vibration treatment.
It is integrally processed with a single clamping, ensuring the rigidity of the machine body and the processing accuracy.
The standard configuration is 4+1 CNC axes, namely Y1, Y2, X, R + V.
The electro-hydraulic servo system, in combination with the imported Swiss optical grating ruler, enables higher bending accuracy.
The automatic hydraulic deflection compensation eliminates the influence of the slider's bending on the quality of the workpiece.
The original imported integrated hydraulic control system reduces pipeline installation and overcomes the problem of oil leakage.
The rear stop is driven by Taiwan HIWIN linear guides and ball screws, which provides faster speed and higher accuracy.
The upper die is equipped with a quick clamping device, reducing the labor intensity of workers and improving production efficiency.
The Dutch DELEM system or the Swiss CYBELEC system can be optionally configured.
According to the user's needs, the rear positioning can control six axes.
Hydraulic upper die clamping can be optionally configured.
The addition of the CNC (axis) adjustment function needs to be discussed separately.
四、 數控折彎機技術參數表（Technical Parameter Table of CNC Plate Bending Machine）:
設備型號 Equipment Model | 公稱力
Nominal Pressure
of Slide | 工作臺長度
Worktable
Length | 立柱間距
Distance Between
Columns | 喉口深度
Throat Depth | 滑塊行程
slider stroke | 最大開啟高度
Maximum opening height | 主電機功率
Main motor power | 設備外型尺寸
Overall dimensions of the equipment |
(KN) | (mm) | (mm) | (mm) | (mm) | (mm) | (KW) | 長*寬*高 |
40/2200 | 400 | 2200 | 1850 | 250 | 100 | 350 | 5.5 | 2560*1300*1900 |
|
40/2500 | 400 | 2500 | 2150 | 250 | 100 | 350 | 5.5 | 2860*1300*1900 |
|
50/2500 | 500 | 2500 | 2150 | 250 | 100 | 350 | 5.5 | 2860*1300*1900 |
|
63/2500 | 630 | 2500 | 2150 | 250 | 120 | 350 | 5.5 | 3060*1380*2200 |
|
63/3200 | 630 | 3200 | 2580 | 250 | 120 | 350 | 5.5 | 3860*1430*2200 |
|
80/3200 | 800 | 3200 | 2580 | 320 | 120 | 350 | 7.5 | 3860*1510*2300 |
|
80/4000 | 800 | 4000 | 2980 | 320 | 120 | 350 | 7.5 | 4660*1430*2300 |
|
100/3200 | 1000 | 3200 | 2580 | 320 | 130 | 435 | 7.5 | 3860*1480*2450 |
|
100/4000 | 1000 | 4000 | 2980 | 320 | 130 | 450 | 7.5 | 4660*1530*2450 |
|
125/3200 | 1250 | 3200 | 2580 | 320 | 130 | 435 | 11 | 3900*1550*2550 |
|
125/4000 | 1250 | 4000 | 2980 | 320 | 130 | 435 | 11 | 4500*1580*2550 |
|
160/3200 | 1600 | 3200 | 2580 | 320 | 150 | 470 | 11 | 3900*1600*2800 |
|
160/4000 | 1600 | 4000 | 3000 | 320 | 150 | 470 | 11 | 4720*1650*2850 |
|
160/5000 | 1600 | 5000 | 4000 | 320 | 150 | 470 | 11 | 5760*1750*;2900 |
|
160/6000 | 1600 | 6000 | 5000 | 320 | 150 | 470 | 11 | 6700*1780*3000 |
|
200/3200 | 2000 | 3200 | 2580 | 400 | 200 | 500 | 15 | 3900*1650*2800 |
|
200/4000 | 2000 | 4000 | 3000 | 400 | 200 | 500 | 15 | 4560*1650*2800 |
|
200/5000 | 2000 | 5000 | 4000 | 400 | 200 | 500 | 15 | 5700*1700*2900 |
|
200/6000 | 2000 | 6000 | 5000 | 400 | 200 | 500 | 15 | 6600*1700*3000 |
|
250/4000 | 2500 | 4000 | 3000 | 400 | 200 | 560 | 18.5 | 4700*1700*3000 |
|
250/5000 | 2500 | 5000 | 4000 | 400 | 200 | 560 | 18.5 | 5760*1700*3100 |
|
250/6000 | 2500 | 6000 | 5000 | 400 | 200 | 560 | 18.5 | 6700*1800*3150 |
|
300/4000 | 3000 | 4000 | 3000 | 400 | 250 | 560 | 22 | 4660*2000*3000 |
|
300/5000 | 3000 | 5000 | 4000 | 400 | 250 | 560 | 22 | 5700*2000*3100 |
|
300/6000 | 3000 | 6000 | 5000 | 400 | 250 | 560 | 22 | 6720*2100*3200 |
|
600/4000 | 4000 | 4000 | 3000 | 400 | 250 | 570 | 22 | 4700*2000*3100 |
|
400/5000 | 4000 | 5000 | 4000 | 400 | 250 | 570 | 22 | 5760*2000*3200 |
|
400/6000 | 4000 | 6000 | 5000 | 400 | 250 | 570 | 22 | 6760*2100*3300 |
|
500/4000 | 5000 | 4000 | 3000 | 400 | 250 | 590 | 37 | 4760*2300*3500 |
|
500/5000 | 5000 | 5000 | 4000 | 400 | 250 | 590 | 37 | 5760*2300*3500 |
|
500/6000 | 5000 | 6000 | 5000 | 400 | 250 | 590 | 37 | 6760*2300*3600 |
|
600/4000 | 6000 | 4000 | 3000 | 400 | 250 | 610 | 45 | 4760*2400*3600 |
|
600/5000 | 6000 | 5000 | 4000 | 400 | 250 | 610 | 45 | 5800*2400*3600 |
|
600/6000 | 6000 | 6000 | 5000 | 400 | 250 | 610 | 45 | 6860*2500*3700 |
|
備注：本資料所列數據為參考數據，如與機床實際數據不符，應以機床實際數據為準，
以上參數如有變動，恕不另行通知，本公司保留對此資 料的最終解釋權！
Remarks: The data listed in this document are for reference only. In case of any discrepancy between these data and the actual data of the machine tool, the actual data of the machine tool shall prevail.
The above parameters are subject to change without prior notice. Our company reserves the right of final interpretation of this document!
