扭軸數控折彎機的工作原理如下：

• 動力與傳動：扭軸數控折彎機通常由電機提供動力，通過液壓系統或機械傳動裝置將動力傳遞到各個工作部件。在液壓傳動的扭軸數控折彎機中，電機驅動油泵，將液壓油加壓并輸送到各個液壓缸，通過液壓缸的伸縮來實現滑塊的上下運動以及其他輔助動作。而在一些采用機械傳動的折彎機中，電機通過皮帶、齒輪或絲杠等傳動機構帶動滑塊運動。

• 扭軸同步原理：扭軸數控折彎機的關鍵在于扭軸同步機構。扭軸是一根貫穿于折彎機兩側的軸，當滑塊進行折彎動作時，扭軸會發生扭轉。扭軸的扭轉角度與滑塊的行程以及折彎力之間存在著一定的比例關系。通過精確控制扭軸的扭轉，可以實現兩側滑塊的同步運動，保證折彎精度。具體來說，當一側滑塊受到的阻力較大時，扭軸會將扭矩傳遞到另一側滑塊，使得兩側滑塊能夠保持同步，避免出現折彎角度不一致或板材扭曲等問題。

• 數控系統控制：數控系統是扭軸數控折彎機的大腦，操作人員通過數控系統輸入折彎參數，如折彎角度、長度、速度等。數控系統根據這些參數計算出滑塊的運動軌跡和扭軸的扭轉角度，并向各個執行部件發送控制信號。在折彎過程中，數控系統會實時監測滑塊的位置和扭軸的狀態，通過反饋機制不斷調整控制信號，以確保實際折彎過程與預設參數相符。例如，如果發現滑塊的運動速度偏離了預設值，數控系統會自動調整液壓流量或電機轉速，使滑塊回到正確的運動軌跡上。

• 模具作用：模具是扭軸數控折彎機實現板材折彎的直接工具。上模和下模分別安裝在滑塊和工作臺上，當滑塊下行時，上模與下模閉合，對置于其間的板材施加壓力，使板材發生塑性變形，從而實現折彎。不同的折彎形狀和尺寸需要使用相應的模具，通過更換模具，可以滿足各種不同的折彎工藝要求。

• Power and Transmission: The torsion shaft CNC bending machine is usually powered by an electric motor, and the power is transmitted to each working component through a hydraulic system or a mechanical transmission device. In a torsion shaft CNC bending machine with hydraulic transmission, the electric motor drives an oil pump to pressurize the hydraulic oil and deliver it to each hydraulic cylinder. The expansion and contraction of the hydraulic cylinders are used to achieve the up-and-down movement of the slider and other auxiliary actions. In some bending machines using mechanical transmission, the electric motor drives the slider to move through transmission mechanisms such as belts, gears or lead screws.

• Principle of Torsion Shaft Synchronization: The key of the torsion shaft CNC bending machine lies in the torsion shaft synchronization mechanism. The torsion shaft is a shaft running through both sides of the bending machine. When the slider performs the bending action, the torsion shaft will twist. There is a certain proportional relationship between the torsion angle of the torsion shaft, the stroke of the slider and the bending force. By precisely controlling the torsion of the torsion shaft, the synchronous movement of the sliders on both sides can be achieved, ensuring the bending accuracy. Specifically, when the resistance on one side of the slider is relatively large, the torsion shaft will transmit the torque to the slider on the other side, enabling the sliders on both sides to remain synchronized and avoiding problems such as inconsistent bending angles or sheet metal distortion.

• Control of the CNC System: The CNC system is the brain of the torsion shaft CNC bending machine. The operator inputs bending parameters such as the bending angle, length, and speed through the CNC system. The CNC system calculates the movement trajectory of the slider and the torsion angle of the torsion shaft according to these parameters, and sends control signals to each executing component. During the bending process, the CNC system will monitor the position of the slider and the status of the torsion shaft in real time, and continuously adjust the control signals through the feedback mechanism to ensure that the actual bending process conforms to the preset parameters. For example, if it is found that the movement speed of the slider deviates from the preset value, the CNC system will automatically adjust the hydraulic flow or the rotational speed of the motor to make the slider return to the correct movement trajectory.

• Function of the Dies: The dies are the direct tools for the torsion shaft CNC bending machine to achieve sheet metal bending. The upper die and the lower die are respectively installed on the slider and the worktable. When the slider moves downward, the upper die and the lower die close, applying pressure to the sheet metal placed between them, causing the sheet metal to undergo plastic deformation, thus achieving bending. Different bending shapes and sizes require corresponding dies. By replacing the dies, various different bending process requirements can be met.

• 詳細介紹：

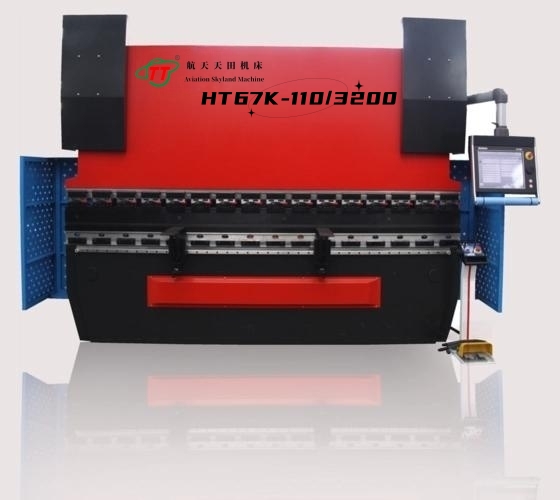

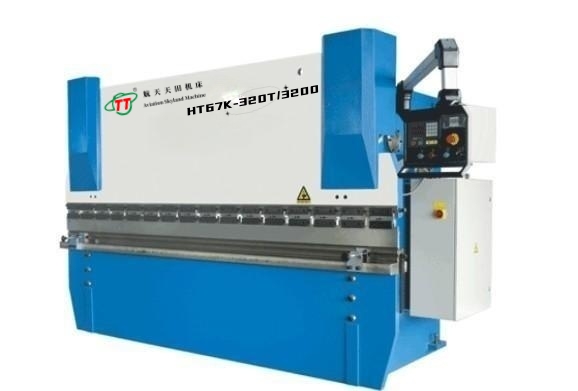

一、HT67K-DA53T系列三軸數控折彎機性能特點//

1、5.7英寸液晶顯示，全中文畫面，數字輸入，無須代碼，按鍵式頁面。

2、控制對象：伺服電機、步進電機；

3、控制軸數：由單軸至三軸，即扭軸，后擋位X軸及后擋位升降，擋手左右調整；油缸尺寸（角度）Y1軸和油缸角度尺寸（角度）Y2軸都可以一次性編成，一次性操作完成所需工件。

4、最小指令單位：0.01mm；

6、位置指令范圍：0~999.9mm；

7、最高輸出頻率：100KHz；

8、數據儲存：可存50組，數據每組20個工作步驟，即總數據存儲可達1000個數據，于工作中可任意提取。

9、后擋料退讓功能：可于參數內設定是否退讓及退讓的長度；/9、后退讓延時功能：根據板材厚與薄調整滑板下壓與退讓時間；

11、到數禁止功能：可設定加工數量，當加工次數到位后機床可禁止動作；/12、工步延時功能：即完成當前工步，開始下一步的時間；

12、選刀功能：在某一組數據內20個工步可任意提取所需工步進行調整；

13、單向功能：消除絲桿本身的間隙。

1. It adopts the DA41 CNC system imported from DELEM Company in the Netherlands.

2. It adopts an all-steel welded structure, and the stress is eliminated through vibration. The bending machine features high strength and good rigidity.

3. With hydraulic upward drive and torsion shaft synchronization, it has high precision, smooth and reliable operation.

4. The distance of the rear stop gauge and the stroke of the upper slider are controlled by the DA41 CNC system. The upper die has a quick clamping function.

5. The upper die is equipped with a deflection compensation mechanism. Both the upper and lower dies are precisely processed from special high-wear-resistant materials.

1. It has a 5.7-inch liquid crystal display with a full Chinese interface. It supports digital input, does not require codes, and has a button-operated page.

2. Control Objects: Servo motors and stepper motors.

3. Number of Controlled Axes: From a single axis to three axes, namely the torsion shaft, the rear stop position X axis and the lifting of the rear stop position, and the left and right adjustment of the stop finger; The dimensions (angles) of the oil cylinder Y1 axis and the dimensions (angles) of the oil cylinder Y2 axis can all be programmed at one time, and the required workpiece can be completed in one-time operation.

4. Minimum Instruction Unit: 0.01mm.

5. Control Precision: 0~0.01mm (excluding mechanical errors).

6. Position Instruction Range: 0~999.9mm.

7. Maximum Output Frequency: 100KHz.

8. Data Storage: It can store 50 groups of data, with 20 working steps in each group of data. That is, the total data storage can reach 1000 data, which can be arbitrarily retrieved during work.

9. Rear Stop Gauge Retraction Function: It is possible to set in the parameters whether to retract and the length of retraction; / 9. Rear Retraction Delay Function: Adjust the downward pressure and retraction time of the sliding plate according to the thickness of the sheet metal.

10. Operation Prohibition Function: When the torsion shaft and the rear stop gauge are in operation, the machine tool cannot move.

11. Countdown Prohibition Function: It is possible to set the processing quantity. When the number of processing times reaches the set value, the machine tool can be prohibited from moving; / 12. Working Step Delay Function: That is, the time to start the next working step after completing the current working step.

12. Tool Selection Function: Among the 20 working steps in a certain group of data, the required working steps can be arbitrarily retrieved for adjustment.

13. Unidirectional Function: Eliminate the gap of the screw rod itself.

三、HT67K-DA53T二軸數控折彎機技術參數表（Technical Parameter Table of HT67K-DA53T Two-Axis CNC Bending Machine）:

以上參數如有變動，恕不另行通知，本公司保留對此資料的最終解釋權！

Remarks: The data listed in this document are for reference only. In case of any discrepancy between these data and the actual data of the machine tool, the actual data of the machine tool shall prevail.

The above parameters are subject to change without prior notice. Our company reserves the right of final interpretation of this document!
